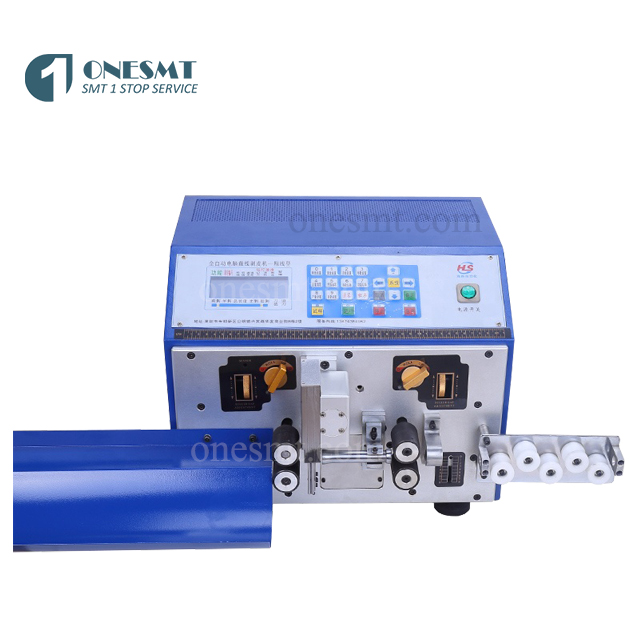

Wire twisted stripping machine

Model: OB-WS034
Brand: OUBEL
Delivery Time: 2-5 working days

Compare

描述

Wire twisted stripping machine

Features:

1.The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display, button operation, can store hundreds of pieces of information, called at any time;

2.Fast efficient,Compatible with the general features of 220 # wire cutting machine;

3.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity;

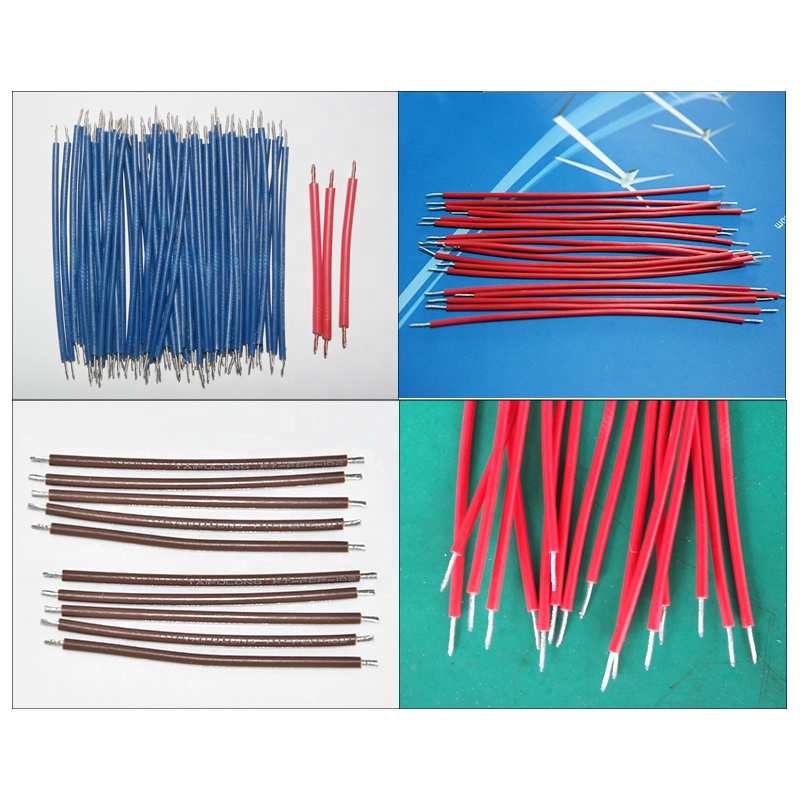

4.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping , twisting function once completed, can instantly transform wire specifications and dimensions,it’s very economic;

5.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.

Specifications:

Dimension 470×720×340mm
Weight45kg
Display methodChinese or English interface display
Power supply AC220/50HZ
Capacity420W
Cutting length1mm—99999mm
Cutting ToleranceAdjustable
Peeling length1.0mm-999.9mm(According to the wire)
Applicable wire core area32#-14#
Productivity3500-7000pcs/h(according to the cutting length)
Tool MaterialTungsten steel / white steel
Stripping speedFast
Cable outer diameterAdjustable
Stripping qualityExcellent
Decimal precisionYes
Drive modeFour simultaneously drive
Stripping pressure adjustmentAdjustable
Speed adjustment0-9
Stripping Modelong wire/ short wire /Multi-stripping / multi stripping
Applicable WireMulti-core wire (non-twisted wire) Single Line: Line 4 square within, AWG # 14– AWG # 32 (available twisted wire)
