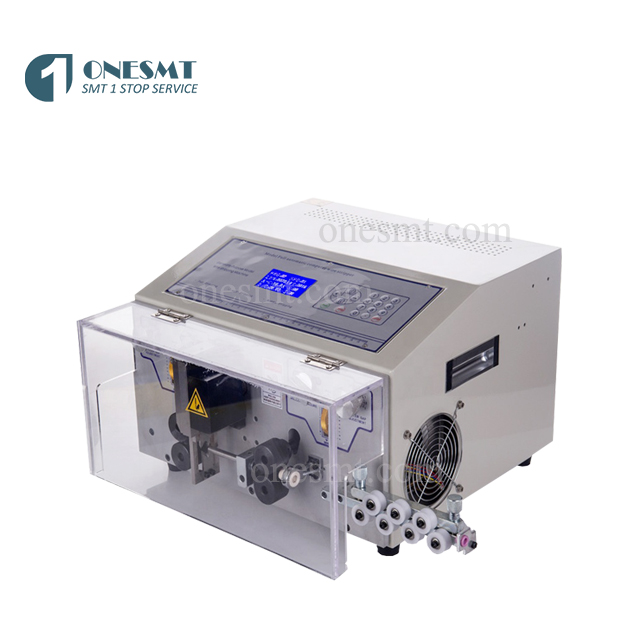

Wire Stripping&Cutting Machine
Features:
1.High precision and productivity solutions for wire cable cutting and stripping;
2.Easy to operate program and low maintenance;
3.Safety protection;
4.Optional external device connection possibility: Wire feeding machine, and wire take-out device.
Specifications:
| Wire range | 0.1-8.0mm² (AWG8-AWG32) | 0.1-8.0mm² AWG8-AWG32 ( Note: BV wire : Max 4 mm² ) |
| Stripping lengths | Front end: 0-35mm | Front end: 0-50mm |
| Rear end: 0-15mm | Rear end: 0-50mm | |
| Max. conduit diameter | 8-10mm | 8-10mm |
| Intermediate strip | 11 | 11 |
| Length accuracy | ±(0.002*L)mm | ±(0.002*L)mm |
| Productivity | 33-83pcs/min (L=100mm) | 33-83pcs/min (L=100mm) |
| Noise level | <70dBA | <70dBA |
| Electrical connection | AC 220/110V/50/60HZ 300W | AC 220/110V/50/60HZ 300W |
| Operation interface | Bilingual | Bilingual |
| Wire material | PVC ,Teflon, Braided ,Fiberglass Wire | PVC ,Teflon, Braided ,Fiberglass Wire |
| Machine dimension: | 390*350*255mm | 390*350*255mm |
| Weight: | 32kgs | 32kgs |
