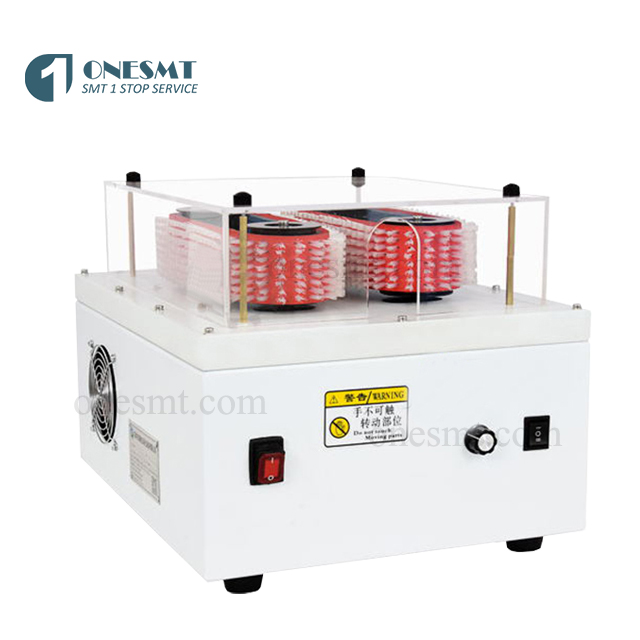

Wire split and brush machine

Model: OB-WB001
Brand: OUBEL
Delivery Time: 2-5 working days

Compare

描述

Wire split and brush machine

Features:

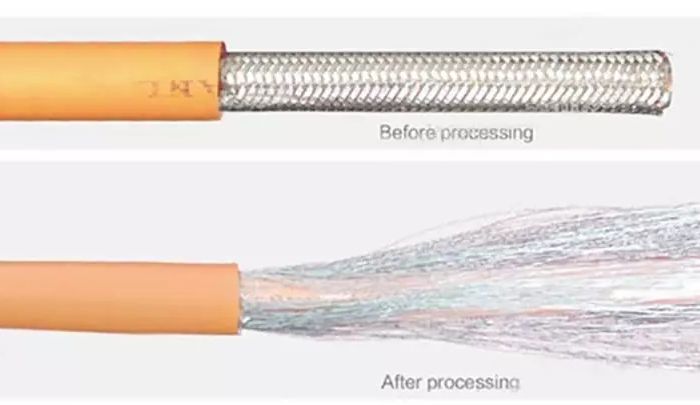

  1. Shielded wire woven mesh machine can process coaxial cable or special cable (ordinary cable) with a length of 200mm and an outer diameter of 30mm. Dispersion can be processed continuously.
  2. The operation mode is manual insertion.
  3. This machine is convenient and quick. If you need to adjust the pulley spacing during the machining process, just turn the rotating handle on the right side of the fuselage.
  4. The electronic part and the mechanical part of the machine are assembled separately, so it is easier and convenient to carry out maintenance, maintenance and inspection in the future.
  5. This machine is designed with a safety cover to protect the operator.

Specifications:

Brush line length10-200mm
Brushable cable diameter100mm2(square)
Productivity100-200pcs/h (Depending on cable type and program)
Breaking structureRotating Belt wheel(pulley)
Rotation modeElectronic control (0-1800 adjustable)
Belt wheel(Pulley)2 pieces (circumference 750*width 62)
Torque12.5kg
power supplyAC220-240V,50-60Hz
driverelectric
weight48kg
Dimensions420*480*320mm
