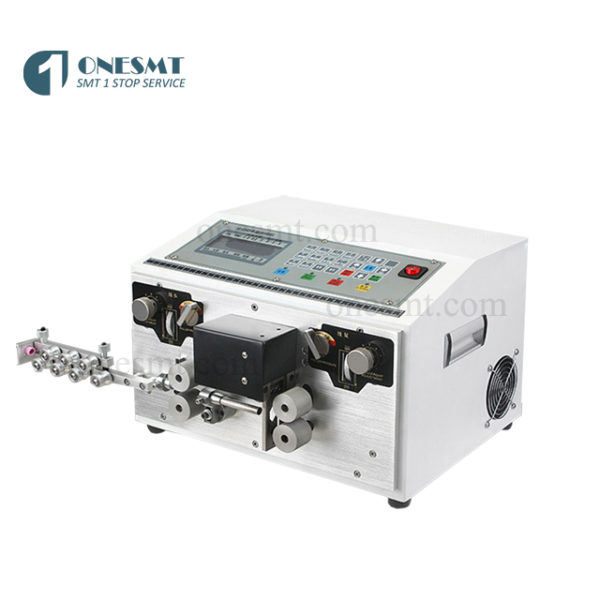

Wire Cable Stripping Machine
Features
1.Exceptional price to performance ratio.
2.Intuitive, flexible and simple User-friendly english operation.
3.Extremely low maintenance.
4.Light and portable,High performance.
5.High speed, high precision .
Specifications
Model | OB-WS330A |
Power source | AC 110V/220V / 50/60Hz |
Dimensions | 400x360x265mm |
Display | LCD display interface in English |
Weight | 30 (KG) |
Power | 160-200 (W) |
Cutting length | 1-9999mm |
Cutting Tolerance | (0.2 ± 0.002 × L) mm |
Off error | can correct |
Stripping length | thread 0-35, line tail 0-15mm |
Middle of stripping | eleven stripping |
Cutting wire core section | 0.1-4mm2 (AWG14 #-AWG32 #) |
Catheter diameter | ¢ 6 |

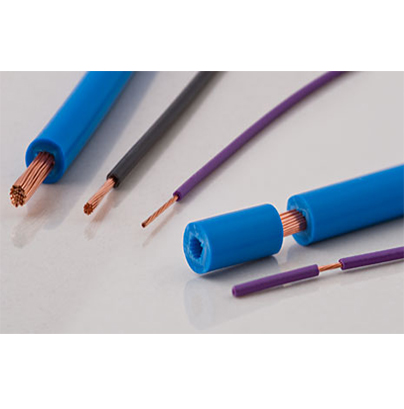

Suitable stripping wire | PVC / Teflon / silicone wire / glass fiber wire, etc. |
Blade Material | Hard tungsten steel (imported white steel optional) |
Stripping speed (/ hour) | L = 100mm, 3000-8000pcs / h (high yield) |
Drive | Two -wheel driver/Four-wheel drive |
