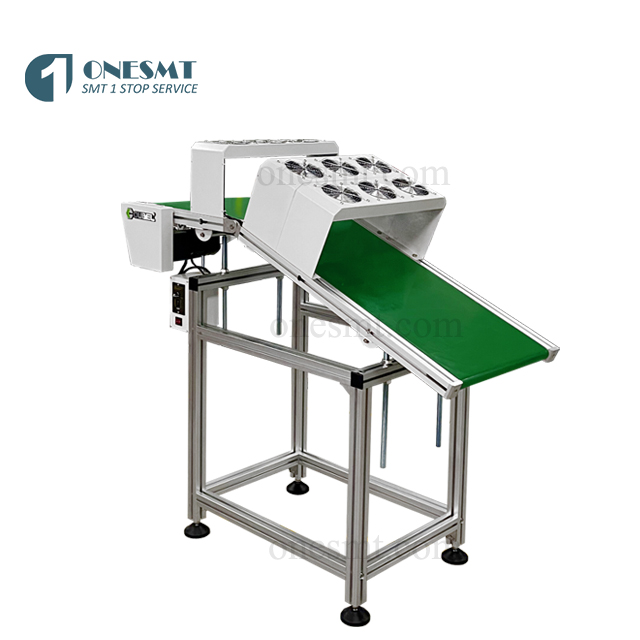

DIP outfeed conveyor with coolling fan
Features:
1.Speed, the angle of the guide rail, height can be adjusted, flexible.
2. Green belt with hole and anti-skidding belt are optional.
3.Using in the THT production line, connect the wave soldering machine and the plug-in lines. Unload the PCBA assembly after the soldering.

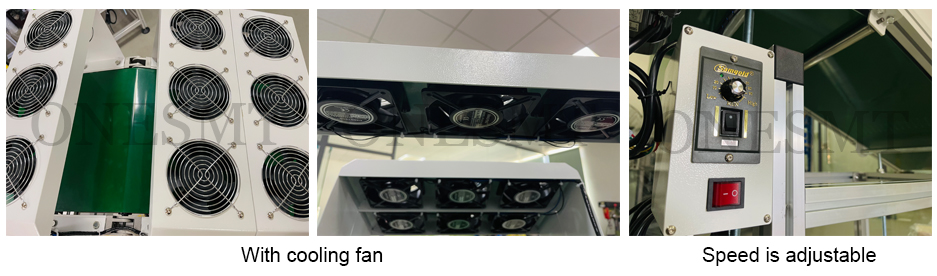

4.The cooling fan can be set to cool down the PCB board.
Details:
Specifications:
| Model | OBEC-868A |
| Dimensions | 1200*520*1400mm |
| Width | 400mm |
| PCB direction | L-R or R-L |
| Speed | 0-4000mm/min |
| Voltage | 1P AC220V 50/60Hz |
| Power | Max 100VA |
| Conveyor height | 750~1200mm |
| Transmission length | 400+800mm |
| Belt material | ESD Green Belt |
| Weight | Approx.35Kgs |
