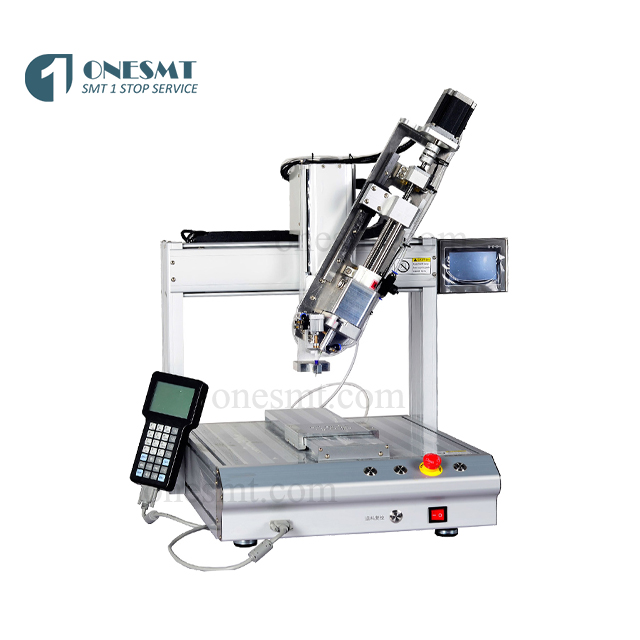

Titling desktop glue dispenser
Feature
1.Operation with handheld LCD panel teach box,which is easy to program and learn.
2.Functions of drawing points,lines,surfaces,arc,circle and consecutive complement of irregular curves to realize any 3D non planar trajectory path.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
Specifications
| Model | OB-G331 | OB-G441 |
| Dimensions | 470*410*530mm | 520*590*600mm |
| Running axis | X.Y,Z axis | |
| Running size | 300(X)*300(Y)*100(Z)mm | 400(X)*400(Y)*100(Z)mm |
| Highest speed | 300mm/s | |
| Repeat precision | ±0.02mm-0.05mm | |
| Controlling system | Hand held control system or touch screen control | |
| Driving method | Step motor+Synchronous belt+Liner guide rail | |
| Program storage | 1000 groups data,3M/group,5000pcs dots. | |
| Support file | CAD,coreldraw | |
| Max.Load | Y:5KGS; Z: 2KGS. | |
| Power | AC 1P 110V/220V 50/60HZ | |
| Weight | Approx.45KGS | Approx.50KGS |
