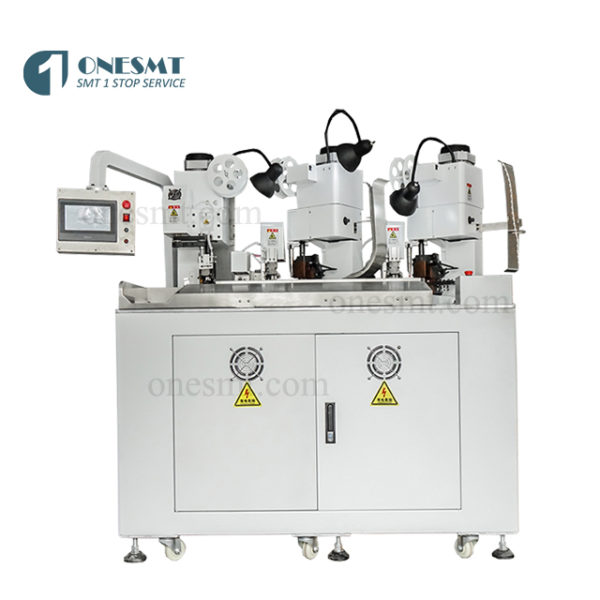

Three ends terminal crimping machine
Features
1.The mechanical equipment is highly automated, and the ordinary workers with simple training can operate two fully automatic CNC three-terminal press terminals.
2.The design adopts modularization, the adjustment is simplified, the standard parts are used, and the maintenance cost is low;Adopt the high – end electric control, independent development program, the man-machine interface operation is simple, easy to learn, easy to operate.
3.High efficiency, stable and intelligent.
4.Fully automatic CNC three-terminal press terminal machine adopts full digital setting of touch screen.
5.Cutting length, stripping length and cutter knife values, half numerical, terminal crimping stripping encapsulates the parameters such as depth, all through the touch screen operation, and adjustment of electric knife design, improve the production efficiency, is the highest degree of automation on the market at present, the most efficient similar type.
Specifications
Dimension | 1000L *750W *1650H(MM) |
Weight | 480KG |
Display | Color LCD touch screen. |
Running method | Auto run + manual run. |
Blade adjustment way | Electric tool setting |
Cutting tool material | High speed steel |
Pneumatic fittings | The original yad. |
Screw guide | Stand on silver guide, TBI screw. |
Cutting line length | 50 ~ 9999mm * the shortest cut length, depending on the pressure used. |
Cutting line tolerance | When the cutting length is less than 100mm, the deviation is 0.3mm+(setting the cutting length * 0.002) |
When cutting off the length of 100mm, the deviation is 0.5mm +(setting the cutting length * 0.002) | |
Stripping length | Front end: 1.00 ~ 8.00mm (half peeled length: 2.00 ~ 8.0mm) |
Back end: 1.00 ~ 8.00mm (half peeled length: 2.00 ~ 6.0mm) | |
Suitable for terminal | Horizontal terminal, straight terminal, flag terminal. |
Suitable for wire rod | AWG16#-AWG28# |
Processing capacity | 3 terminal pressing terminals 2500 / h (equivalent to #28 ~ #16, cutting length 120mm) |
Double line and 3800 bars/hour (equivalent to #28 ~ #16, cutting length 120mm) | |
Single line double end pressure: 4200 / h (equivalent to #28 ~ #16, cutting length 100mm) | |
Single end pressure: 4500 / hour (equivalent to #30 ~ #16, cutting length 100mm) | |
Terminal pressure | Standard 2.0T, other pressure relay needs to be customized. |
Air pressure | 5-6kg/cm2 (requires stable, clean, dry air) |
Configure the power supply | National standard/city electricity AC220V. |
Rated power | 2.5KW |
