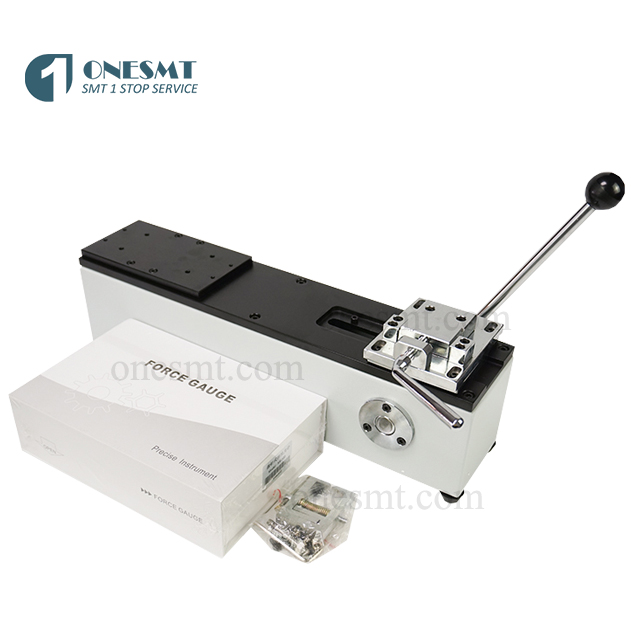

Terminal pull tester
Introduction:
The terminal pull tester is a push-pull load test bench for the pull meter. The AEH electric horizontal tension test bench adopts double guide structure, which has the advantages of good stability, wide application range and convenient use, and has stepless speed regulation, digital display test speed, manual (jog) and automatic control switching function. The number of reciprocating tests is preset, and the automatic stop load value can be preset. AEH digital display terminal pull tester is suitable for all kinds of push-pull load, insertion force, fatigue test, damage test and other tests.
Specifications:
| The maximum load | 500N (Kg, N and ib three units can be automatically converted) |
| Resolution | 0.01N |
| Accuracy | ± 0.5% |
| Output interface | RS 232 nine-hole socket |
| Power supply | Charging power: 220V / AC; battery continuous working time: 6 ~ 8 hours |
| Stability | Temperature drift: 0.2uV / ° C (0 ~ 60 ° C); zero drift: ≤ 0.1% / 8 hours / FS |
| Calibration range | Full scale calibration |
| Ambient temperature | 0 to +60 °C |
| Allow overload | 150% |
