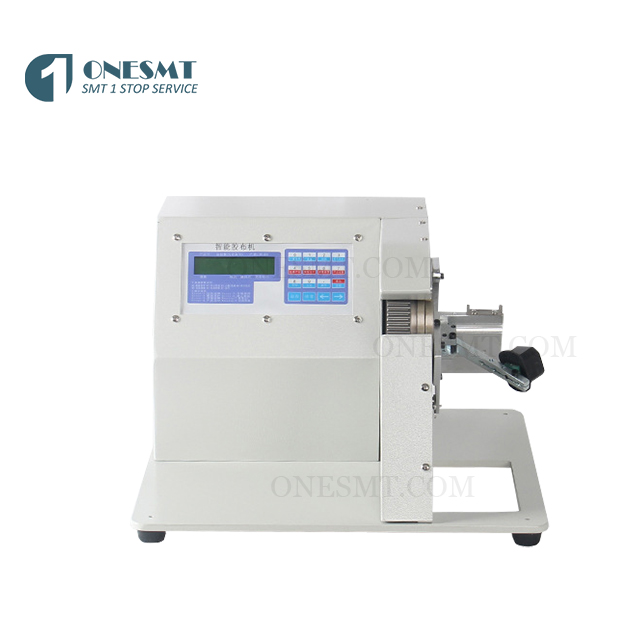

Taping Winding Machine
Features:
1.High precision,Economical & user-friendly;
2.Extremely low maintenance;
3.easy operation.
Description:

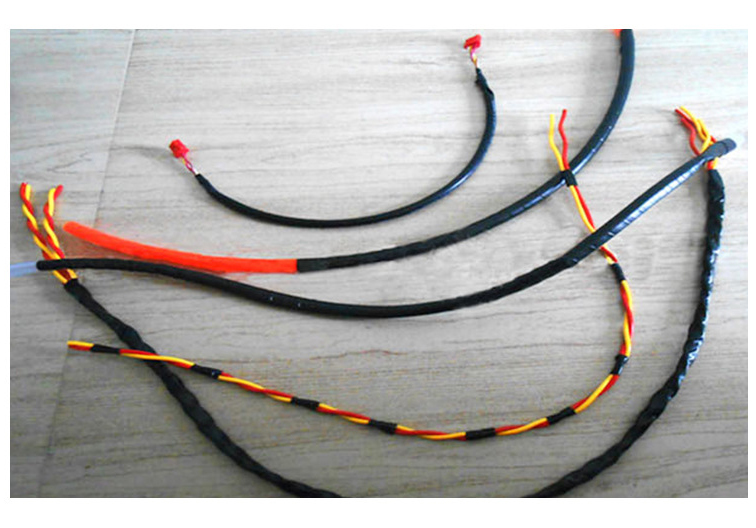

For the wire and complex forming, provides automated placement and winding.It not only can guarantee the high quality of the wiring harness, but also good value,especially applicable for thick wiring harnesses. Small, quick, reliable, cost-effective and thus absolutely economical, the perfect machine for efficient and cost-effective production.
Specifications:
| Applicable to maximum wire diameter | Max Φ30 mm |
| Tape outside diameter | Max Φ100 mm |
| Tape roll inner diameter | Φ32 mm or Φ38 mm (Please advise other sizes in advance) |
| Tape width | 5-25 mm(Other sizes are customizable) |
| Dimension | 550*500*350 mm |
| Winding length | Infinite |
| Main engine rate of revolution | 4500 RPM |
| Net Weight | 48 KG |
| Display method | Chinese or English interface display |
| Power supply | AC 220/110 v 50/60 HZ |
| Winding length | Any require length |
| Suitable for tape | flannelette, acetic acid cloth, electrical tape |
| Winding speed | Max 12 R/S |
