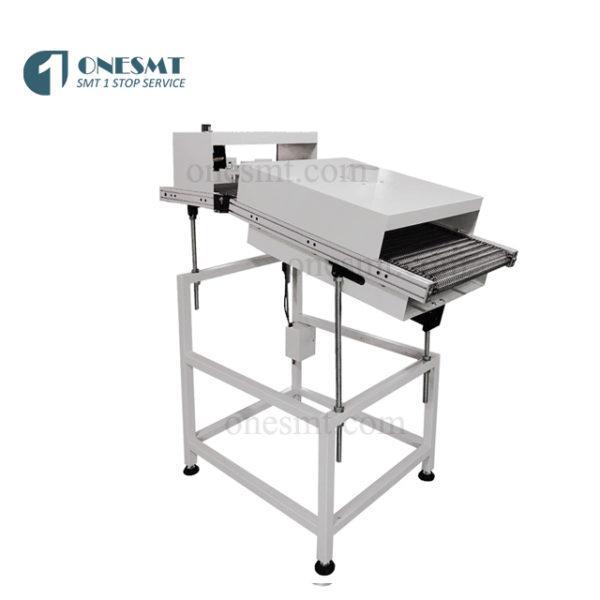

Stainless steel mesh Exit PCB conveyor
Features
1.Speed, the angle of the guide rail, height can be adjusted, flexible.
2. With stainless steel mesh , it can cool down the PCBA shortly after the wave soldering.
3.Using in the THT production line, connect the wave soldering machine and the plug-in lines. Unload the PCBA assembly after the soldering.
4.With cooling fan .
Specifications
| Model | OBEC-868A |
| Dimensions | 1200*490*1200mm |
| Width | 400mm |
| PCB direction | L-R or R-L |
| Speed | 0-4000mm/min |
| Motor | 1P AC220V 50/60Hz 15W |
| Power supply | 1P AC220V 50/60Hz |
| Conveyor height | 750~1200mm |
| Transmission length | 400+800mm |
| Belt material | Stainless steel mesh |
| Weight | Approx.65Kgs |
