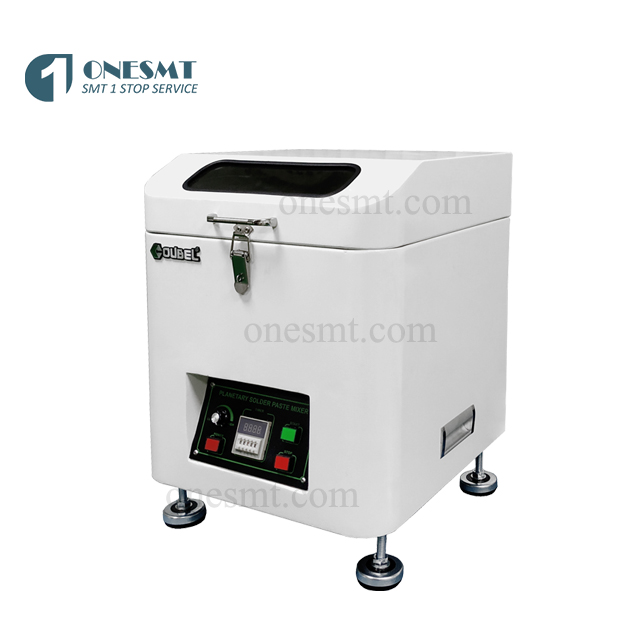

Solder paste mixer

Solder paste mixer applies to centrifugal mixing
500g/bottle, 2 bottles/time.
Speed is adjustable.

Model: OB-M628
Brand: OUBEL
Delivery Time: 2-4 working days

Compare

描述

Solder paste mixer

Features

1.Unique contoured shape,generous appearance and practical, which is made by advanced coating process workmanship

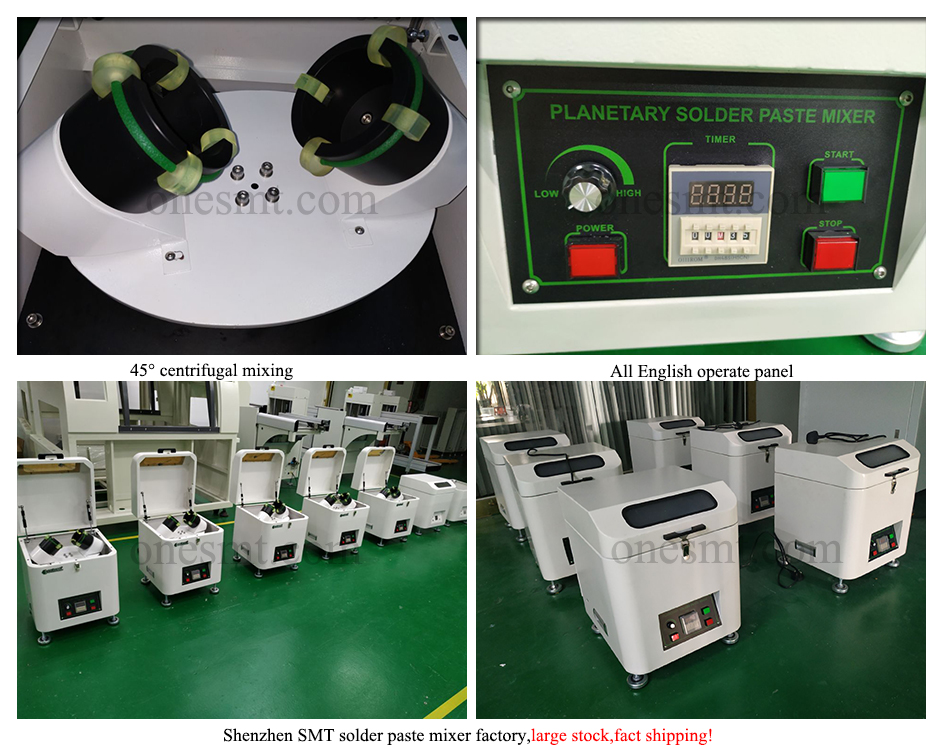

2.Mixing principle is on the basis of Motor rotation and revolution mode of agitation,no need to defrost the paste. Need to recovery the paste in short time, then the solder can be used after stirring well and deforming

3.Okay for all brands of 500g paste, mixing with 2 cans in one time, which can save time and efficient

4.Paste box no need to be opened during stirring to avoid oxidation and water vapor absorption

5.Closed stirring can fix running time, make sure stability of paste softness, and by stirring old and new paste can make new active paste

6.Enjoy the high degree of automation, stable performance, easy to operate, high safety factor, and simple in maintenance

7.Applies to Omron time relay controller, reliable and easy to operate.

Specifications

ModelOB-M628
Dimensions430×400×480(mm)
Revolution speed600RPM/Min
Rotation speed350RPM/Min
Power1P AC110/220V 50/60HZ
Mixing methodCentrifugal mixing
Mixing angle45°
Mixing capacity500g/jar,2jars/time
WeightApprox.40Kg
