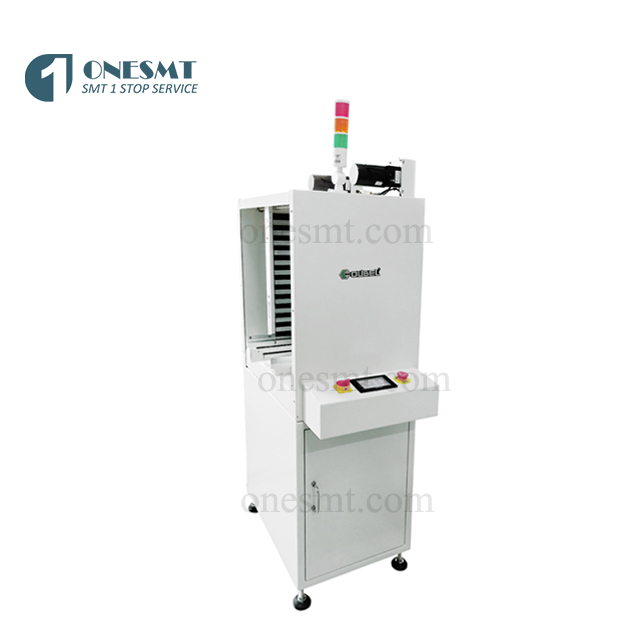

SMT Loader
Features:
1.PLC+touch screen control,easy to operate.
2.Easy to operate key control interface。
3.Parallel and smooth width adjustment (silk bar).
4.Fast, smooth, accurate retrieval and positioning.
5.Small footprint.
6.Double cycle tank chain structure.
7. With SMEMA signal.
Details:
Specifications:
| Model | OB-L708S | |||||||
| Dimensions | 780*500*1560mm | |||||||
| PCB size | 50*50-420*320mm | |||||||
| Power source | AC 1P 110V/220V 50/60HZ Max.100VA | |||||||
| Conveyor speed | 6s | |||||||
| Conveyor height | 900±20mm | |||||||
| Conveyor direction | L-R or R-L (optional) | |||||||
| Weight | Approx.170Kgs | |||||||
