Signal end terminal crimping machine

Ultra-quiet terminal machine, using high-tech frequency conversion technology, electronic precision positioning

Model: OB-SC608
Brand: OUBEL
Delivery Time: 3-5 working days

Compare

描述

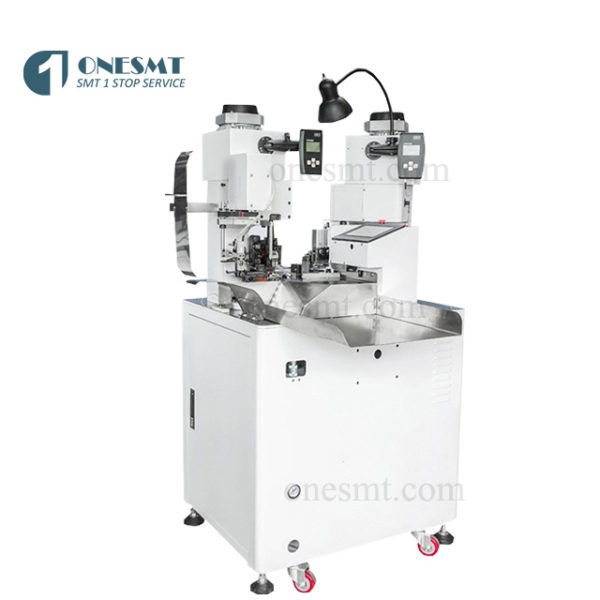

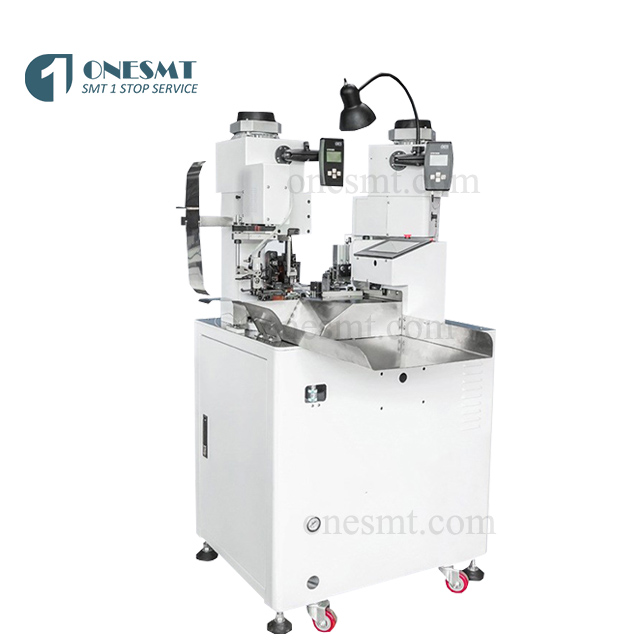

Signal end terminal crimping machine

Features

1.The machine for universal mute terminals, precision pressure to speed, simple operation, high strength ductile iron body structure, the overall stability and durability greatly enhanced.

2.Peeling and the pressure to complete a onetime, waste scurfy blow away by inhaling and ensure consistent pressure depth of percentage. The use of advanced CPU control each action accurate, easy to operate. Stripping length, conductor length, cutting insulation peelingsize, using vernier micrometer adjustment, more accurate.

3.We manufacture all kinds of Terminal Crimping Machine . High quality & low price! and provide OEM service.

Specifications

FunctionDoule end cutting,stripping,signal terminal, another tiwist, whole stripping and half stripping is avaiable
Size700L*600W*1500H
Weight213KG
DisplayColor LCD touch screen
Mode of operationAuto run + manual operation
Blade adjustment methodMotorized adjusting
pneumatic partsAirTAC
wire cutting length20mm-9999mm
cutting toleranceMAP range:1mm
wire crimping length0.00mm-12.00mm
Suitable wiresAWG18—28#
cutting speed7600PCS/hour
working ability4200PCS/hour
Crirmp forcestandard 2.0T
Air pressure5.0KG
PowerAC 220V
Rated power2.5KW
