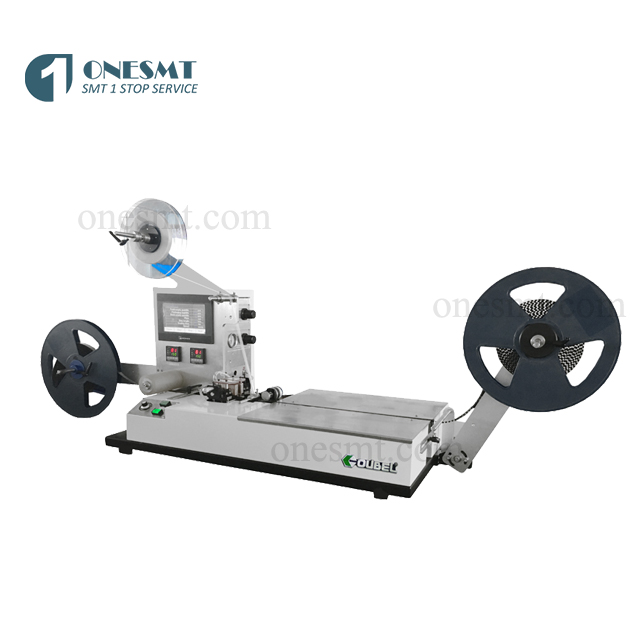

Semi-automatic smd taping machine
Features
1. Applies to the step motor to cover the tape , higher precise!
2. PLC＋Touch screen control , more stable and easy to operate!
3.High precision vertical sealing, good sealing effect, and with the precision trimmer, trimming do ± 0.01mm.
4.Vertical sealing structure; Sealing tape or adhesive tape carrier are optional, inching seal and continuous seal both are ok .
5.With counting function , zero mistake！
6.Length can be customized.
Specifications
| MODEL | OB-T02 |
| Dimensions | 1500×430×720（mm) |
| Power source | AC 220V/110V 50/60HZ |
| Air source | 3.0-7.0kg/cm² |
| Rotation Speed | 350RPM/Min |
| Power source | 300W |
| Packing speed | 3000-7000pcs/hour |
| Packing width | 8-72mm tape,all materail tape |
| Weight | Approx. 54KGS |
