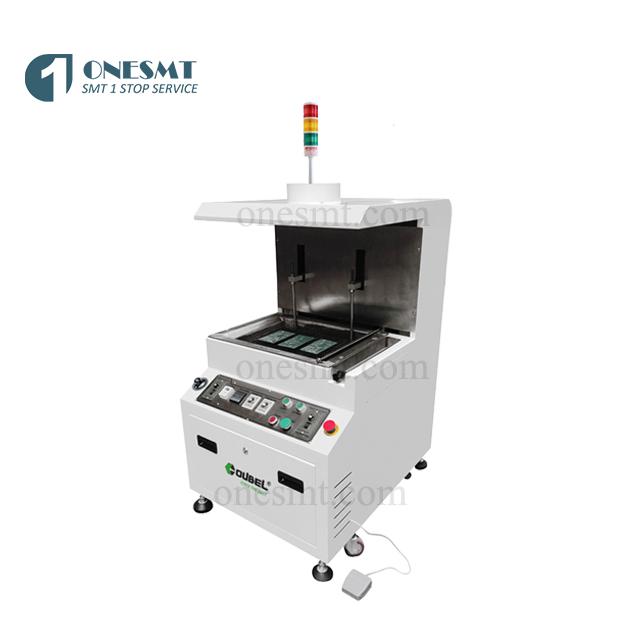

Semi-automatic PCB DIP soldering machine

Features

1.Up and down running using the step motor driving the ball screw, precision is up to 0.1mm, welding depth is accurate.

2.Up&down speed and the welding angle are adjustable,which decrease the surface tension, fulfill the technique requirement.

3.Automatic clear the solder oxide to the solder splash pot every work cycle,improve the welding quality.

4.Welding time, 1s-10s can be adjustable.

5.Soldering pot applies to the special thicky stainless steel, temperature controller applies to the K-thermocouple.

6.Suitable for the small quantity production.

7. With tri-color light, when over set temp. It will alarm and red light.

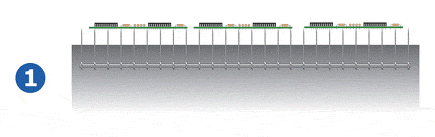

Working mode

Specifications
