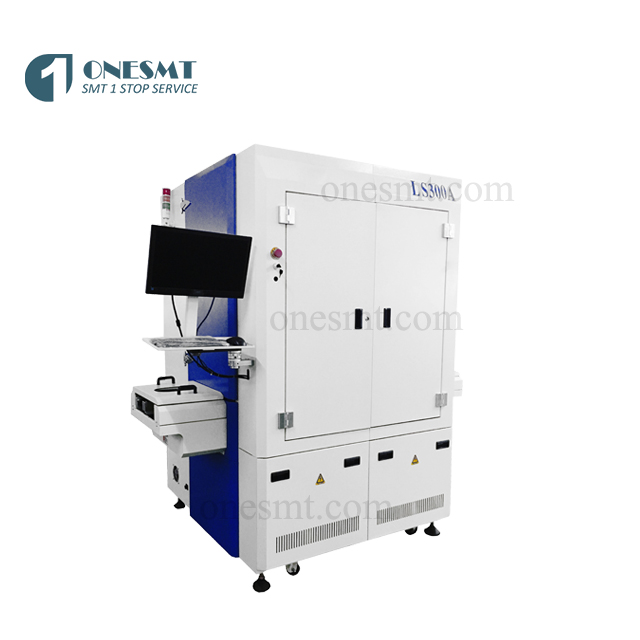

PCB Vertical curing oven

PCB Vertical curing oven

For baking PCB glue , save time, save space!

Model: OB-LS300
Brand: OUBEL
Delivery Time: 45-60 working days

Compare

描述

PCB Vertical curing oven

Features:

1.It can connect directly with the belt conveyor system, automatic loading, unloading, high degree of automation, save labor, can be connected to the machine before and after to fulfill the automation.

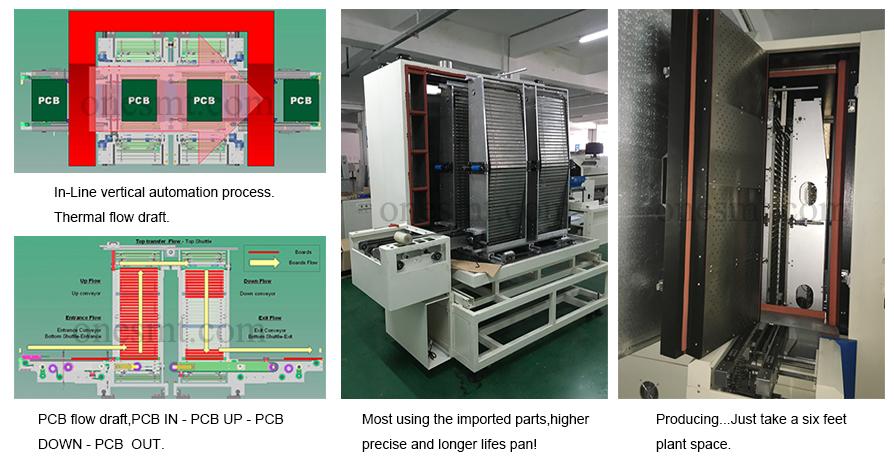

2.Small footprint, curing time is the same, vertical curing oven taking the space would be over 3 times less than the normal curing oven ; instead of the traditional tunnel furnace and oven, storage-cycle break the traditional operation, space-saving

3.Long curing time, adjustable from 2-0.5 hours; online vertical curing oven continuous processing, eliminating fluctuations in feed and unloading when opening the door caused by the curing temperature, to ensure that products output temperature from the first to the end one are the same.

4.High production efficiency, The time of the input&output and heating&cooling will be less than the generally offline curing oven;

5.Industry-leading small loop heating mode, use the side heating, double air conveyor system, to ensure that no dead curing.

Specifications:

ModelOB-LS300
Dimensions2200mm*1500mm*2500mm(L*W*H)
PCB size80*80-250*300mm
Conveyor height900±20mm
PCB capacityLeft and Right 30pcs , 60pcs in all
Curing time30minites-2hours adjustable
Conveyor directionL-R or R-L  optional
Temperature distributions difference±3℃
Temp control precise±1℃
±1℃
Power input
4W 3P 380V
Total power24KW
Conveyor speed0.3M-2M/Min adjustable
Heating up time20minites
Highest temperature250℃
Heating zone quantity8zones
Loading weight for each floor1KG
Pitch between two PCBs28mm
WeightApprox. 1000KGS
