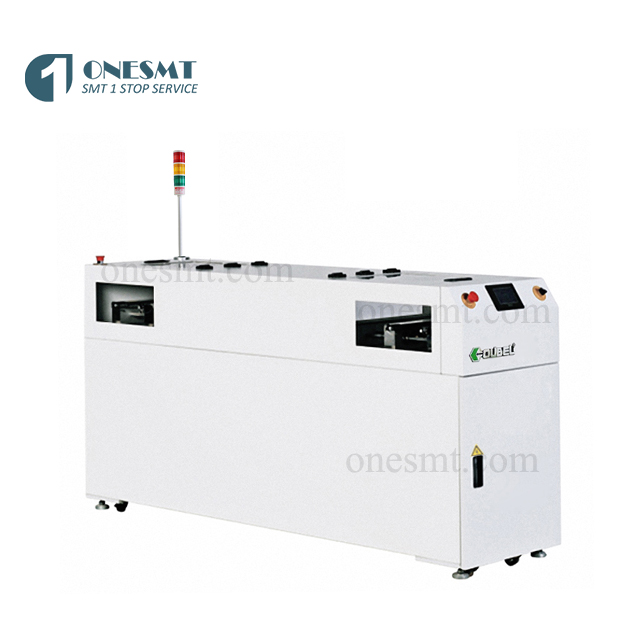

PCB shuttle conveyor
Features：

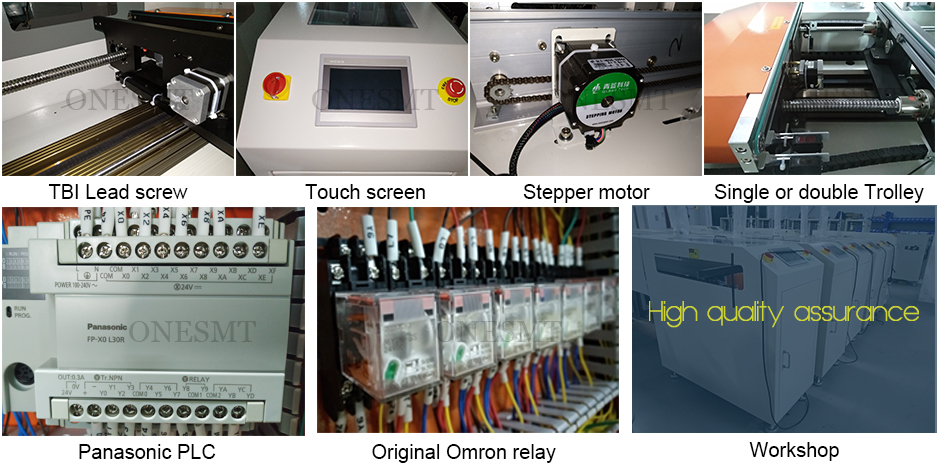

1.PLC+LED touch screen control, easy to operate.
2.Full closed design ensures safety level of operation.
3.The cover can be opened to facilitate machine maintenance.
4.Smooth and precise width adjustment (leadscrew).
5.Smooth and accurate movement (stepping motor).
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.
Note: It can make to order! Welcome to tell us your requirement.
Details：
Specifications:
| Model | OB-SC618 | OB-SC618A | ||
| Dimensions | 500*W*1050mm | 500*W*1050mm | ||
| PCB size | 50*50-330*250mm | 50*50-460*330mm | ||
| PCB thickness | Min.0.6mm | |||
| Belt type | Round belt or flat belt (optional) | |||
| Power/power consumption | AC 1P 110V/220V 50/60HZ | |||
| Conveyor height | 900±20mm | |||
| Conveyor direction | L-R or R-L （optional) | |||
| Weight | Approx.140Kgs | Approx.200Kgs | ||
