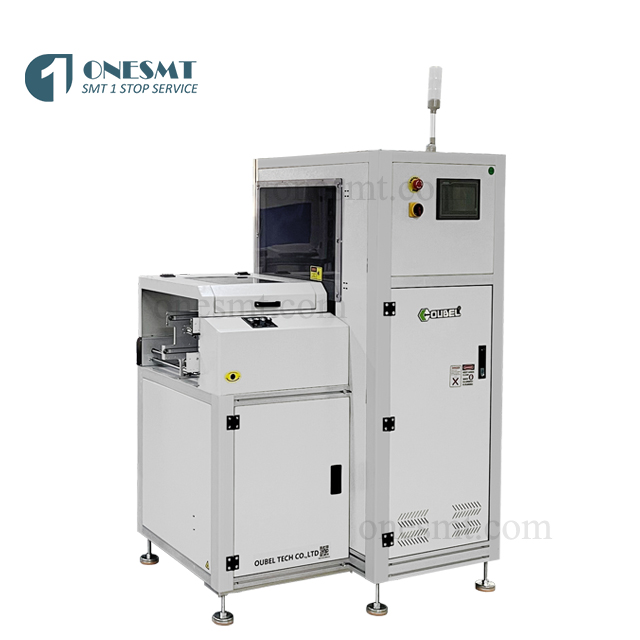

PCB NG OK Buffer Conveyor
Features:
1.PLC+LED touch screen control, easy to operate;
2.Use durable rollers for transmission (No need change belts);
3.Three modes of operation:FIFO （ first in first out）,LIFO （ last in first out）, PASS;
4.With back conveyor,transport NG&OK board with SMEMA;
5.Smooth and precise width adjustment (leadscrew);
6.Fast, smooth and precise search and location;
7. Full closed design ensures safety level of operation.

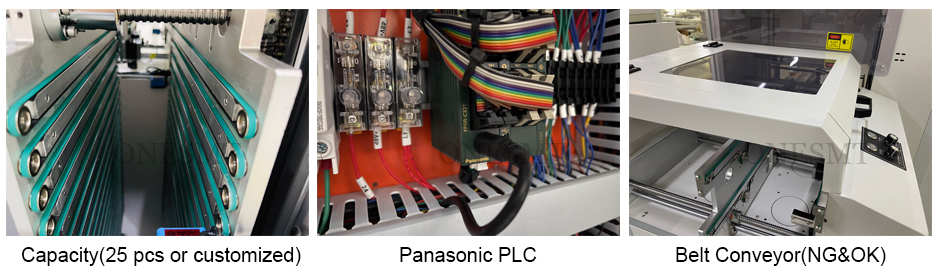

Details:
Specifications:
| Model | OB-MBC608-N | |||||||
| Discription | It is used transport NG&OK board with SMEMA,with back conveyor. | |||||||
| Dimensions | 610*1100*1250mm | |||||||
| PCB size | 50*50-530*460mm | |||||||
| Circle time | About 10s | |||||||
| PCB capacity | 25pcs( or customized) | |||||||
| Power | 1P AC 110V/220V 50/60HZ | |||||||
| Power source | Max.250VA | |||||||
| Conveyor height | 900±20 | |||||||
| Conveyor direction | L-R or R-L | |||||||
| Weight | Approx.260KGS | |||||||
