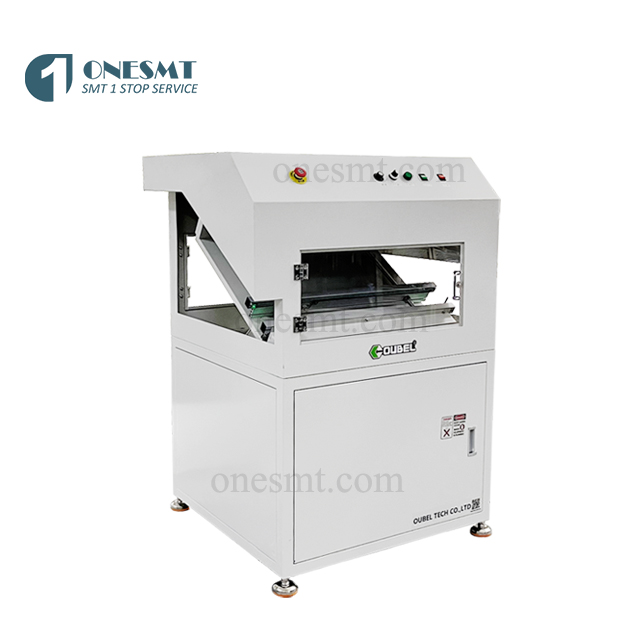

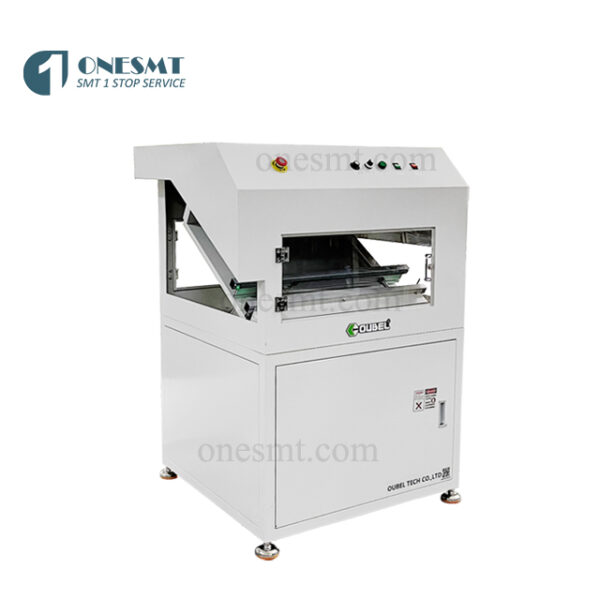

PCB Angle Conveyor
Features:
1.User Touch-tone control panel.
2.Enclosed design with built in torque limiter ensures highest level safety.
3.Smooth and parallel width adjustment (leadscrew),with belt conveyor.
4.Steady and precise rotation(Step motor).
5.Minimize transmission clearance between conveyor.
6.With SMEMA signal.
7.Conveyor angle can adjust.
Details:
Specifications:
Model | OB-AC460 | |
Dimensions | 1000*900*1400mm(customize) | |
PCB size | 50-460mm | |
PCB thickness | Min.0.6mm | |
Conveyor height | 900±20mm | |
Conveyor direction | L-R or R-L (optional) | |
Power supply | 1P 110V/220V 50/60 HZ | |
Adjust angle | 0-40° | |
Communication | SMEMA signal | |
Weight | Approx.130Kgs |
