NG OK PCB magazine unloader
Features:
1.PLC+Touch screen control , easy to operate.
2.Design with firm structure.
3.The upper and lower air clamps ensure the location of the material box accurately.
4.Special gas path design ensures that the PCB panel is not pushed.
5.Automatic detection of fault code display function.
6.With SMEMA signal .

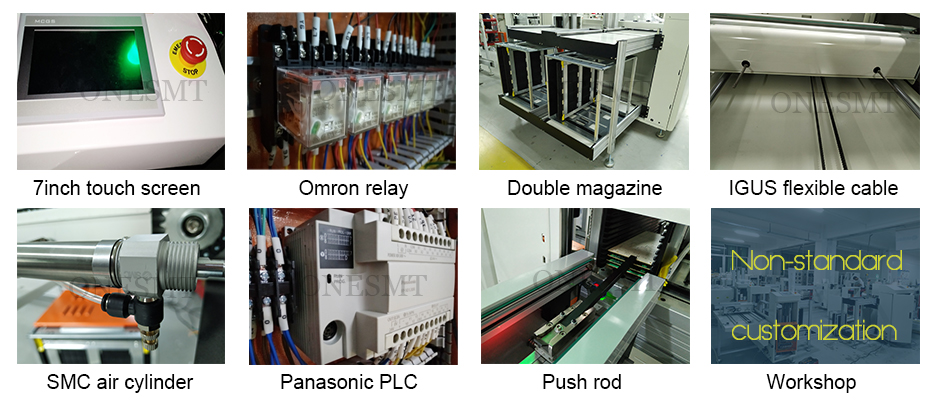

Details:
Specifications:
| Model | OB-UL728-N | OB-UL728L-N | OB-UL728XL-N | OB-UL728XXL-N |
| Dimensions | 1510*1530*1250mm | 1910*1630*1250mm | 2160*1760*1250mm | 2160*1900*1250mm |
| PCB size | 50*50-330*250mm | 50*50-445*330mm | 50*50-530*390mm | 50*50-530*460mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*563mm | 535*530*563mm |
| Magazine qty | Up1,down 1 | |||
| Magazine change time | About 30s | |||
| Pitch | 10/20/30/40mm | |||
| Power/Power comsuption | AC 1P 110V/220V, 50/60HZ.Max.300VA | |||
| Air source | 4-6Bar,Max.10L/min. | |||
| Conveyor height | 910±20mm | |||
| Conveyor direction | L-R or R-L(optional) | |||
| Weight | Approx.300Kgs | Approx.340Kgs | Approx.380Kgs | Approx.400Kgs |
