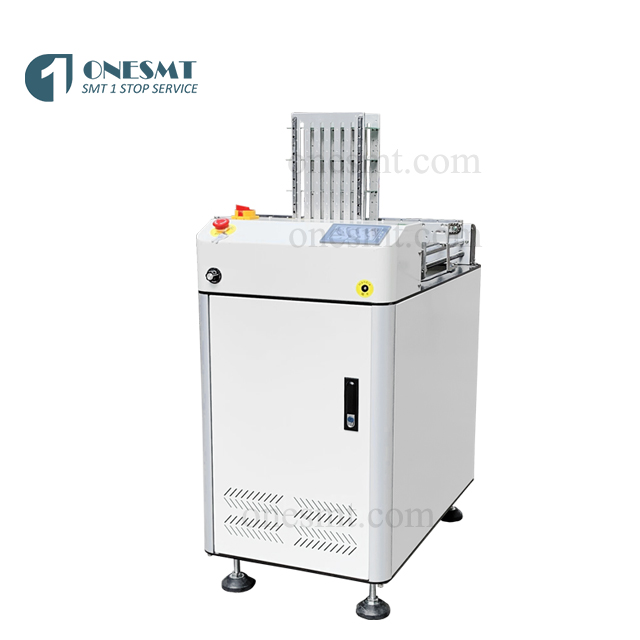

NG OK Conveyor
Features:
1.Reject,inspect and pass through modes provided.
2.PLC controller.
3.Stability enhanced by robust design.
4.Smooth and parallel width adjustment.
5.Length can be customized.
6.Speed is adjustable.
7.SMEMA compatible.
Note: Single or dual rails are customized.
Details:
Specifications:
| Model | OB-RC608 | OB-RC608A | ||||||
| Dimensions | Length*665*900mm | Length*735*900mm | ||||||
| PCB size | 50*50-445*330mm | 50*50-445*460mm | ||||||
| Conveyor speed | 0.5-20M/min | |||||||
| Power source | 1P AC 110V/220V 50/60HZ | |||||||
| Power consumption | Max.100VA | |||||||
| Air pressure/consumption | 4-6Bar ,10L/min | |||||||
| NG PCB quantity | 3-5pcs | |||||||
| Conveyor height | 910±20mm | |||||||
| Conveyor direction | L-R or R-L (optional) | |||||||
| Weight | Approx.75KGs | Approx.95KGs | ||||||
