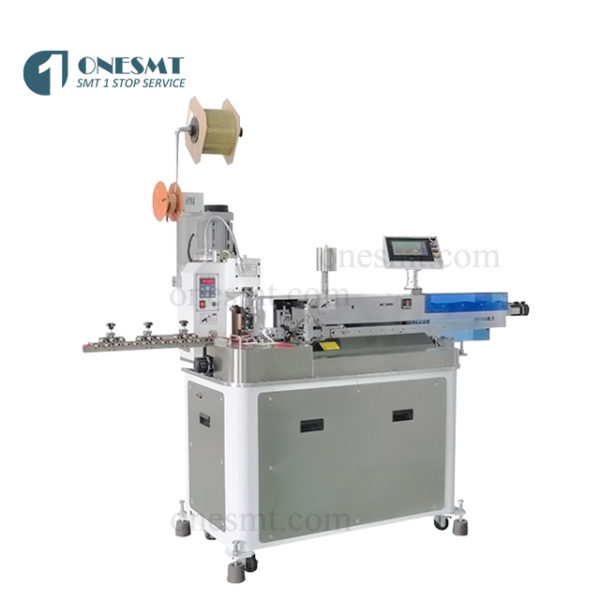

Mute Terminal Crimping Machine
Features
1. Terminate crimping machine
2. Built-in frequency converter, high speed and low noise
3. Suitable for various terminals, very easy to change mold.
4. Support manual mode and automatic mode, you can adjust the machine easily in manual mode
5. LED display will show how many terminals have been crimped
6. Speed of terminate crimping machine is adjustable, crimping die designed according to your requirement.
Specifications
Tangent length: | 38-9999mm |
Stripping length: | 1 side 10mm,2 side 1.5mm-10mm |
Wire size: | AWG1007#18-#30 |
Cutting precision: | About 0.1mm(design 0.005 total length) |
Compressed air: | 0.5Mpa,about 200NL/Min |
Capacity: | 4500PCS/hour shortest tangent |
Control mode: | Microcomputer control series |
Power supply: | 220V/50Hz 110V/60Hz |
Weight: | 110KG |
Size: | 1300x1480x1450mm |
