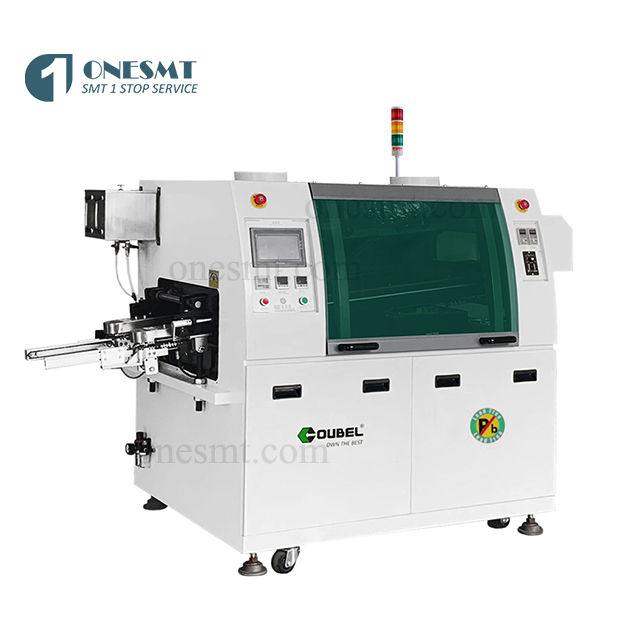

Mini wave soldering machine

Features

1. open canopy-style streamlined shell design, beautiful appearance, easy to clean.
2. The lead-free solder furnace made of stainless steel production. High strength and hardness special aluminum rails, long lifespan;
3. Applies to the PLC + touch screen controller, Ensure system reliability and stability;
4. Spray system applies to the step motor , it can adjust the width according to the PCB size , save solder flux;

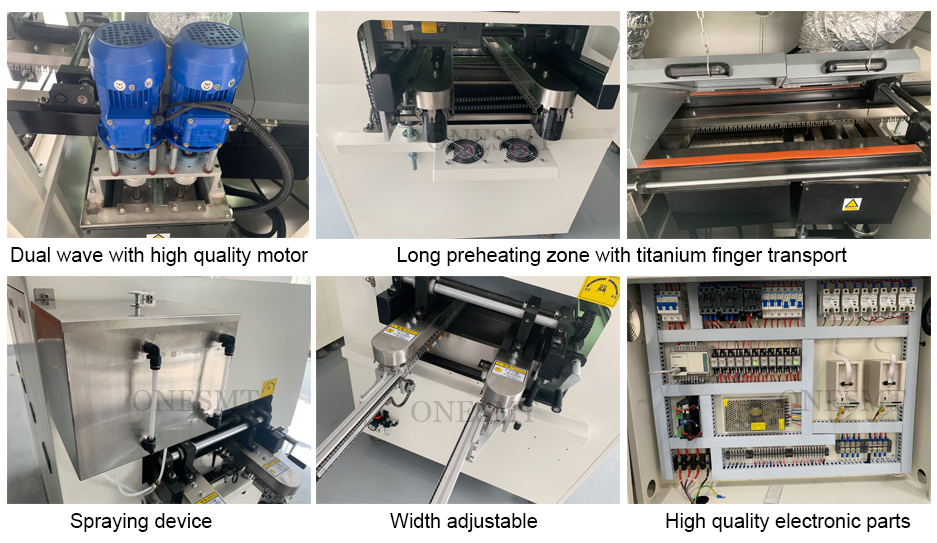

5. Wave soldering stove adopt stepless electronic frequency control, it can independently control the wave height.
6. The unique flux isolated device, flux fumes from the exhaust and recycling channel dedicated discharge, to meet environmental requirements.
7. Programmable Automatic Turning the date, time, temperature and other parameters.
8. equipped with a cooling module, the temperature compensation module, and a variety of process requirements for lead-freetechnique;
9. The ceramic heating pipe preheating unit, fully stimulate the flux activity, to obtain good welding results. Radiation heat directly to the bottom of the PCB, heat, long life.
10. Patented die-cast claw-type chain, titanium, non-stick tin, never deformation, long life, smooth and reliable transport PCB.
11. The entire process transparent observation window for easy observation of the manufacturing and maintenance operations.
12. Transportation system with stepless electronic speed control, PID control, transport speed and stability.
13. Automatic start wave when go through the PCB, to minimize the amount of tin oxide.
14. The temperature control system uses closed-loop PID control, temperature stable and reliable.
15. With short circuit and overcurrent protection system.

Specifications
