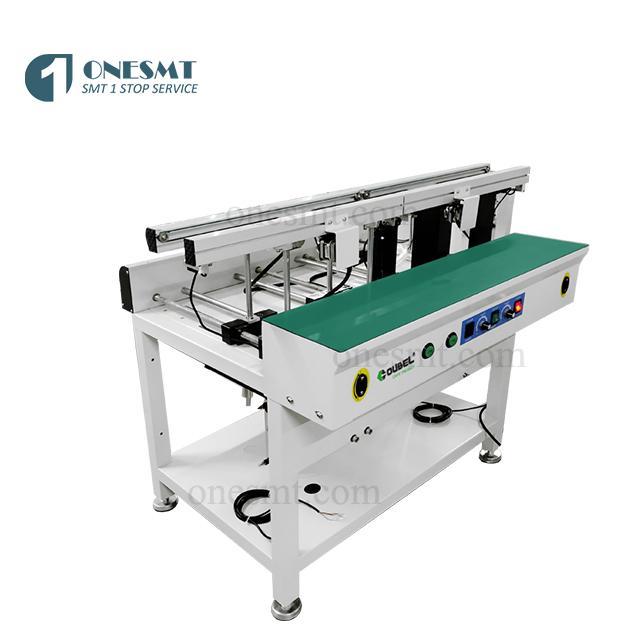

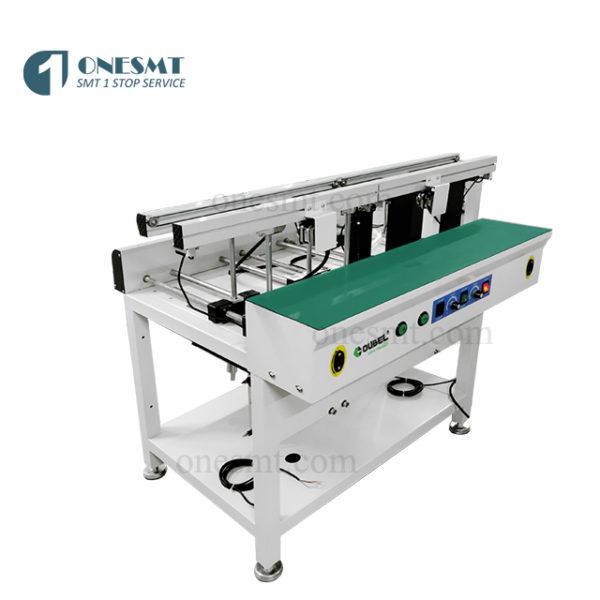

Lift PCB conveyor
Features:
1.Modular deisgn.
2.Bottom weighted design improves running stability.
3.Inspection mode and automatic mode.
4.Speed is adjustable.
5.Size is customized.
6.Can rise and drop
7.With SMEMA.
Note: Machine can be customized according to your requirement. Such as length, width, with cooling fan, PCB stop pieces , with touch screen, Auto width adjustment…
Details:
Specifications:
Model | OB-C608J |
Dimensions | Length*1050*900mm |
PCB width | 50-350mm |
PCB direction | L-R or R-L(optional) |
Rail quantity | 1 |
Conveyor speed | 0.5-20M/min |
Power | 1P AC 110V/220V 50/60HZ |
Conveyor height | 900±20mm |
Weight | Approx.100Kgs |
