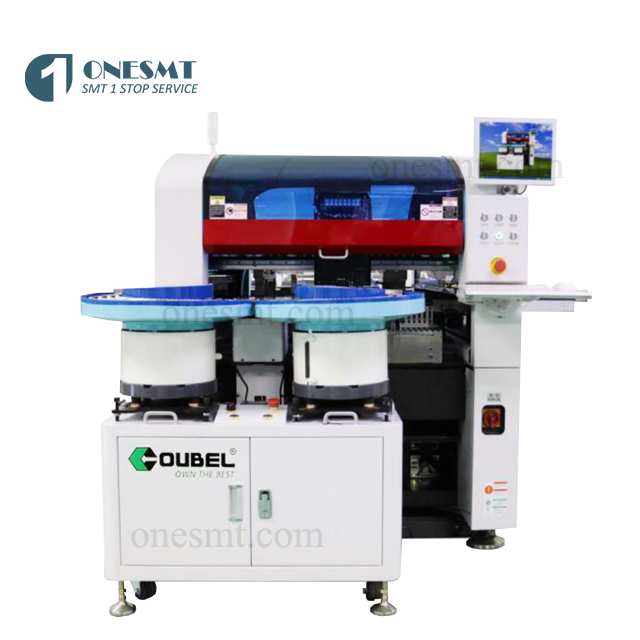

LED Lens Mounter

Model: OB-M08I
Brand: OUBEL
Delivery Time:20-25 working days

Compare

描述

LED Lens Mounter

Features:

1.Applies to the Japan Yamayo linear motor enables the equipment to achieve higher accuracy, faster speed and lower wear;

2.Applies to the German advanced industrial linear scanning camera realizes zero time difference, zero pause and high precision component identification;

3.High precision thermal compensation system realizes real-time monitoring of mounting accuracy and automatic correction;

4.Automatic switch of suction nozzle to realize simultaneous compatibility of various components;

5.Electric feeder ensures more accurate feeding and solves the problem of unstable feeding and component discarding;

6.8-channel independent research and development of high-end vibration feeding system;

7.Chinese- English software, easy to operate;

8.Suitable for LED lens or other chips mounting.

Specifications:

MODEL
OB-M08I
Dimensions
2000mm×2350mm×1550mm
Mounting speed
26000CPH
Mounting precision
±0.05mm
PCB Size
50*50-1200*460mm
PCB thickness
0.6-3.0mm
PCB weight
0.68KGS
Lens size
5-30mm
Mounting head
8
Feeder capacity
16 stations (feeder bow is optional)
Feeder size
8-56mm
Suitable chips
0201-30mm IC BGA , resistance ,capacitor
Clamp method
By side and By up and down clamp
Power supply
3P 380V 50/60HZ
Positioning method
By camera
Air source
0.5-0.8MPa
Controller
Windows 7
Weight
Approx. 1900Kgs
