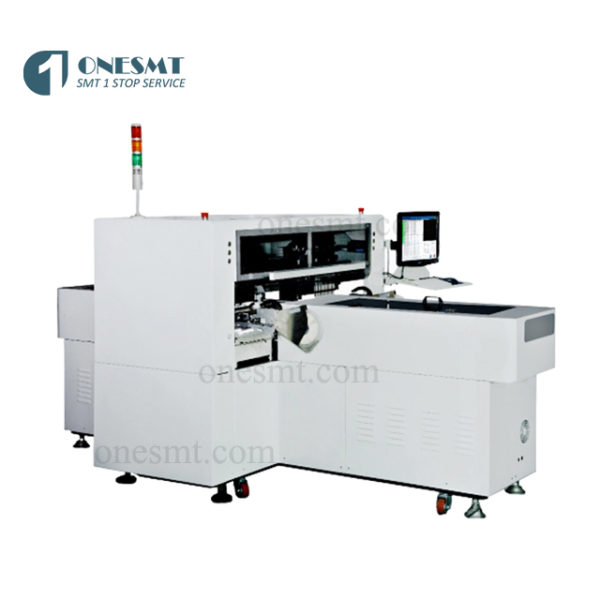

High speed LED pick and place machine
OB-R3:
45 feeders SMT mounter for 1.2M/1.5M LED tube. Highest speed is up to 120000CPH.Fastest , most stable. highest cost effective!!!
(OB-G13 30 feeders OB-R3 45 feeders)
Features:
1.In-line operation.
2.Panasonic servo +Kuroda screw rod,higher precise!
3.Group packing ang group placing principle,the production quantity can up to 120000-150000CPH.Fastest!
4.With 5 sets imported camera,ensure thr higher mouting precision.
5.Original nozzle pitch can be adjusted freely,nozzle angle can rotate 360°.
6.Suitable for all kinds of LED product mounting. Especially for LED tube,LED soft light.
7.Each head is controlled by independent vacuum pump.
Specifications:
| Group picking , group mounting; A/B arms can control independently. | |
| A/B arms with 15 noozles each, CCD camara mark fixture. | |
| Production qty : 110000-120000 points/hour (30 nozzles working at the same time) | |
| Guide rail driving : max. length 1.2M. | |
| Mounting height : 13mm. | |
| Max. PCB height : <3KG (include chips) | |
| PCB twist: <1mm. | |
| Chips pitch: 2mm. | |
| Conveyor: Max. speed >300mm/s | |
| Conveyor method: in line driving. | |
| Conveyor way: Front—Back or Back –front (optional) | |
| Fixture method: Optics. | |
| Air supply:>5.0KG/ CM2 | |
| Air comsuption: <80PSI(0.5Mpa) /min | |
| Specificaitons | |
| Dimensions: 2700(L)*1700(W)*1400(H) Weight : Approx.1700KGS. | |
| PCB size : <1200MM(L)*250MM(W) Thickness: 0.5mm-5mm. Fixture method: Adjustable pneumatic fasten. | |
| Operation system: Windows XP Input devices: Keyboard mounth Output device:LCD display. | |
| Chips : up 1206, 2835,3014,3528,LED tape chips. | |
| Mounting precise: ± 0.02mm Chip. | |
| Feeder qty : 30pcs.(8mm feeder) | |
| Power Supply:1P 380V AC 50Hz Total power : 3 kw | |
| Parts list | |
| X.Y aixs driving method: X,Y,Z aixs servo motor. | |
| German imported camera : industry special | |
| 2 million pixels CCD + Lense (one set),used in the MARK ficture. | |
| 2 million pixels CCD + Lense (four sets),used in the adjustment of the feeders and nozzles. | |
| Industry special computer. | |
| Moving controlling module : development by SY. | |
| Imported pneumatic elements from Japan. | |
| Left/right side holding casting by total. | |
| Bean: casting moulding by total. | |
| Motor: Panasonic | |
| pneumatic elements: Airtac. | |
| Vacuum Pump : imported from Japan. | |
| Electric controlling part: develop by SY. | |
| Sensor: Japan Omron. | |
| Maintenance tool one set. | |
| Operation environment: 25℃±2℃ |
