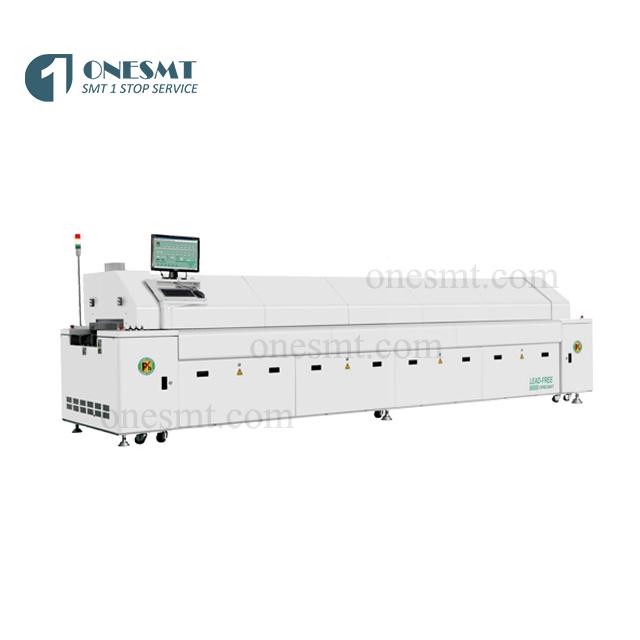

Lead free SMT Reflow Oven with N2
Features
1. Lenovo PC , windows 7 operation system, Chinese-English interface screen.
2.All production data will be backup automatically,which is suitable for the ISO9000 management.
3.Fault Intelligent Diagnosis,display alarm and list out.
4.15% heat transferring efficiency was improved ,which is more suitable for the LEAD-FREE welding process.
5.Guide rail is through the special heat treatment, it’s hard to out of shape.
6.The main hanging is reinforced, which can avoid the deforming and PCB jamming.
7. Siemens PLC control, more durable and stable.
8. With N2 system.
Specifications
| Model | HS-0802-LF |
| Specifications about heating system | |
| Quantities of heating zones | Top8 /bottom8 |
| Length of heating zones | 3500mm |
| Quantities of cooling zones | Up 2 ,Down 2 |
| Specifications about conveyor | |
| Max width of PCB | 400mm |
| Width of conveyor | 50~400mm |
| Conveyor direction | R to L (option: L to R) (customized) |
| Fixing conveyor rail | Front rail fixing/rear rail fixing (customized) |
| Height of conveyor | 900±20mm |
| Conveyor | Chain conveyor and meshwork conveyor |
| Conveyor speed | 0～2000mm/Min |
| Specifications about controlling parts | |
| Power | 5 line 3phase 380V 50/60HZ with UPS delay power off |
| Total power | 50KW |
| Start power | 26KW |
| Normal working consume power | Approx. 4.7KW |
| Heating time | Approx. 20min |
| Temperature range | Room temperature~~~350℃ |
| Controlling way | PID closed loop control, SSR drive |
| Temperature control accuracy | ±1℃ |
| PCB temp. Deviation | ±1.5℃ |
| Abnormal alarms | When temperature is abnormal(too high or too low) & When the PCB board drops |
| Signal lamp | 3 lamps: yellow-rising; green- constant; red- abnormal |
| Cooling System | |
| Cooling method | Forced air /Air cooler is option |
| Specifications about machine | |
| Dimensions(mm)L*W*H | 5400*1370*1555mm |
| Weight (Approx.) | 2200kg |
