L shape PCB unloader
Features:
1.User friendly “soft touch” LED membrance control panel or touch screen is optional.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.L shape design, save the whole production line length.
6.With SMEMA signal.

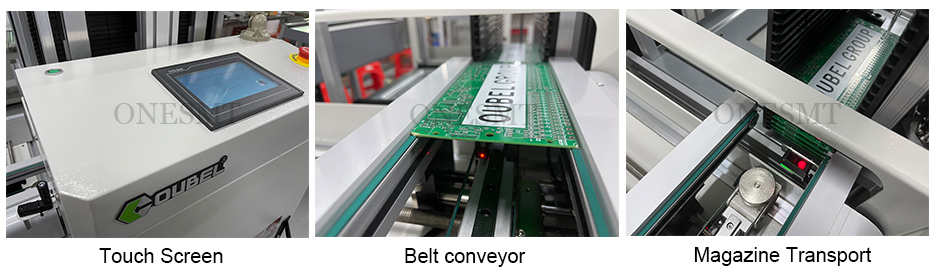

Details:
Specifications:
| Model | OB-LUL718 | OB-LUL718L | OB-LUL718XL |
| Dimensions | 1150*1150*1205mm | 1350*1350*1205mm | 1550*1550*1205mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*563mm |
| PCB size | 50*50-330*250mm | 50*50-445*330mm | 50*50-530*390mm |
| Magazine quantity | Up 1,down 1. | ||
| Feed PCB time | About 6s | ||
| Magazine change time | About 30s | ||
| Pitch | 10,20,30,40mm | ||
| Power | 1P AC 110V/220V 50/60HZ | ||
| Air pressure | 4-6bar, 10L/min max. | ||
| Conveyor height | 900±20mm | ||
| Conveyor direction | L-R or R-L | ||
| Weight | Approx.160Kgs | Approx.220Kgs | Approx.280Kgs |
