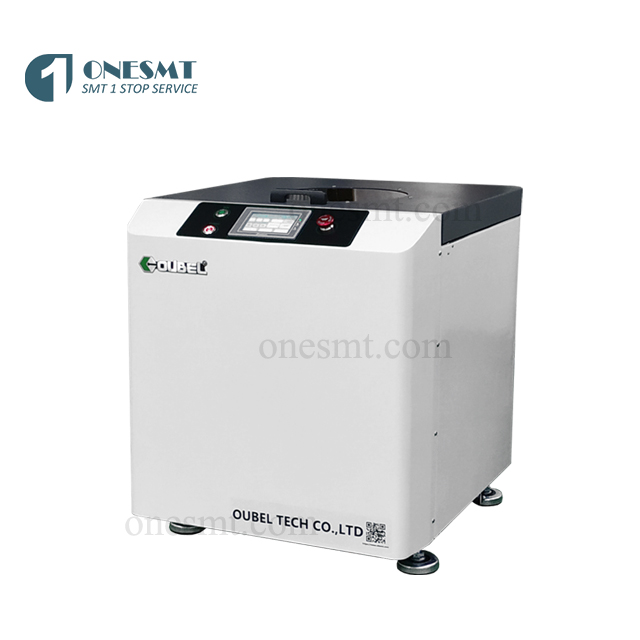

High speed Silver paste planetary mxing machine
Features

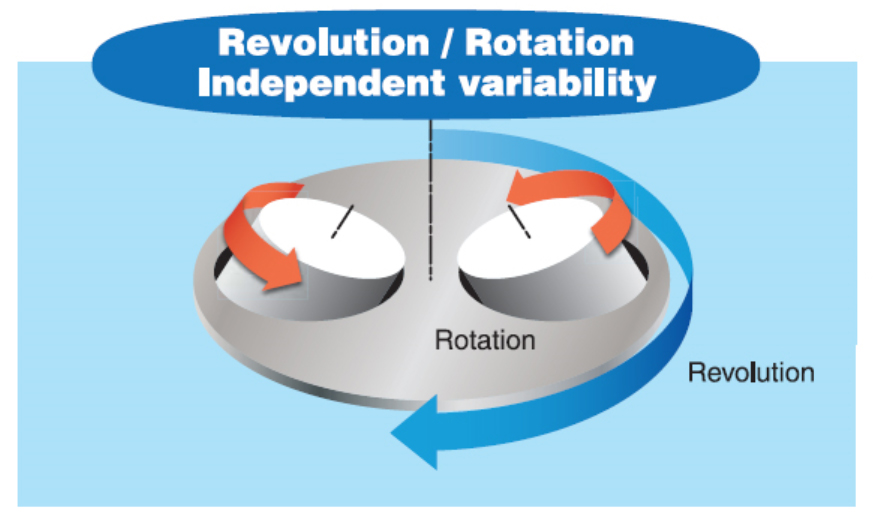

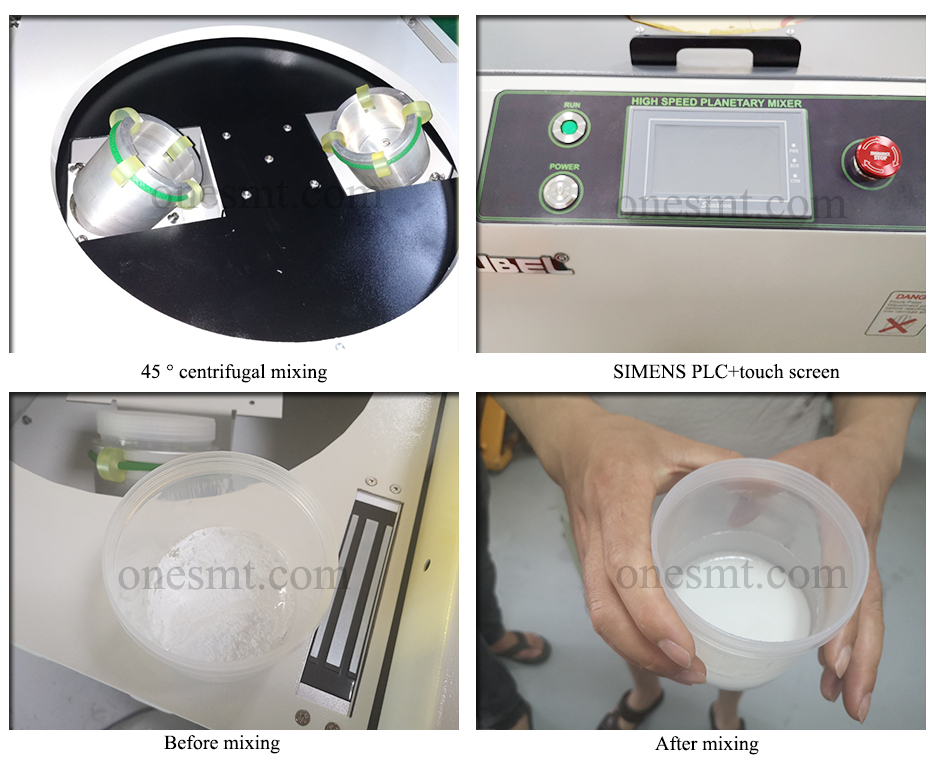

1.Mixing principle is on the basis of Motor rotation and revolution mode of agitation (centrifugal mixing principle), 45° mixing, to get a good mixing result.
2. Jig can be make to order.
3.No need to be opened during mixing to avoid oxidation and water vapor absorption.
4. With safe lock, when the machine running, the top cover can’t open.Safe enough!
5. With alarm function, when the machine finish the set time running, it will alarm to notice you.
6. Mixing time / speed is adjustable. With alarm function when finish mixing.
7. frequency speed controlling , operation is easy, stable running, no noise!
Mixing material :
Silver Paste , Resin adhesive , Powder ,printing ink , Cosmetics, Fluorescent powder, Silica gel, Thermal conductive adhesive…
Specifications
MODEL | OB-M628A | |||||||
Dimensions | 700×700×760(mm) | |||||||
Revolution speed | 0-1200RPM/Min | |||||||
Rotation speed | 0-1000RPM/Min | |||||||
Motor | 1P AC110/220V 50/60HZ 800W | |||||||
Power | 1P AC110/220V 50/60HZ | |||||||
Mixing method | Centrifugal Mixing | |||||||
Mixing angle | 45°(oblique) | |||||||
Weight | Approx. 180KGS |
