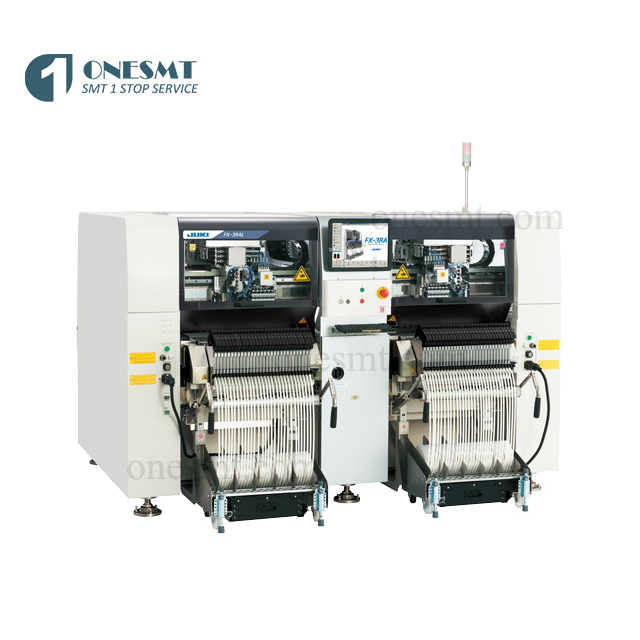

High-Speed Modular Mounter JUKI FX-3RA
Features
| Chip | 90,000CPH (0.040Sec. / chip / Optimum） 66,000CPH (IPC9850) |
|---|
1.0402mm(01005 inch) ~ 33.5mm×33.5mm.
2.Laser recognition : ±0.05mm(±3σ).
3.On-the-fly centering using integrated laser.
4.2 stations, 4 gantries, 4 placement heads, 24 nozzles.
5.Linear servo motor XY drive with full closed-loop control.
6.Holds up to 240 components.
7.Electrical or mechanical feeder trolley.
specification
| Item/Model | High-Speed Modular Mounter FX-3RAL | High-Speed Modular Mounter FX-3RAXL | |
|---|---|---|---|
| Board size | L size(410x360mm) | yes | no |
| L-Wide size(510x360mm)*1 | yes | no | |
| XL size(610×560mm) | no | yes | |
| Applicability to long PWB*1 | 800×360mm | 800×560mm | |
| Component height | 6mm | yes | |
| Component size | Laser recognition | 0402(01005) ~ 33.5mm×33.5mm | |
| Placement speed (chip) | Optimum | 0.040Sec. / chip(90,000CPH)*2 | |
| IPC9850 | 66,000CPH*2 | ||
| Placement accuracy | Laser recognition | ±0.05mm(±3σ) | |
| Feeder inputs | Max.240 in case of 8mm tape (on a Electric double tape feeder) | ||
*1 L-Wide size , Applicability to long PWB is optional.
*2 This speed does not apply to XL board size.
