High speed industrial mixer

High speed industrial mixer
Centrifugal mixing principle ;
Mixing the silver paste,glue etc. material;
Size and speed are customized.

Model: OB-M628A
Brand: OUBEL
Delivery Time: 10-15 working days

Compare

描述

High speed industrial mixer

Features

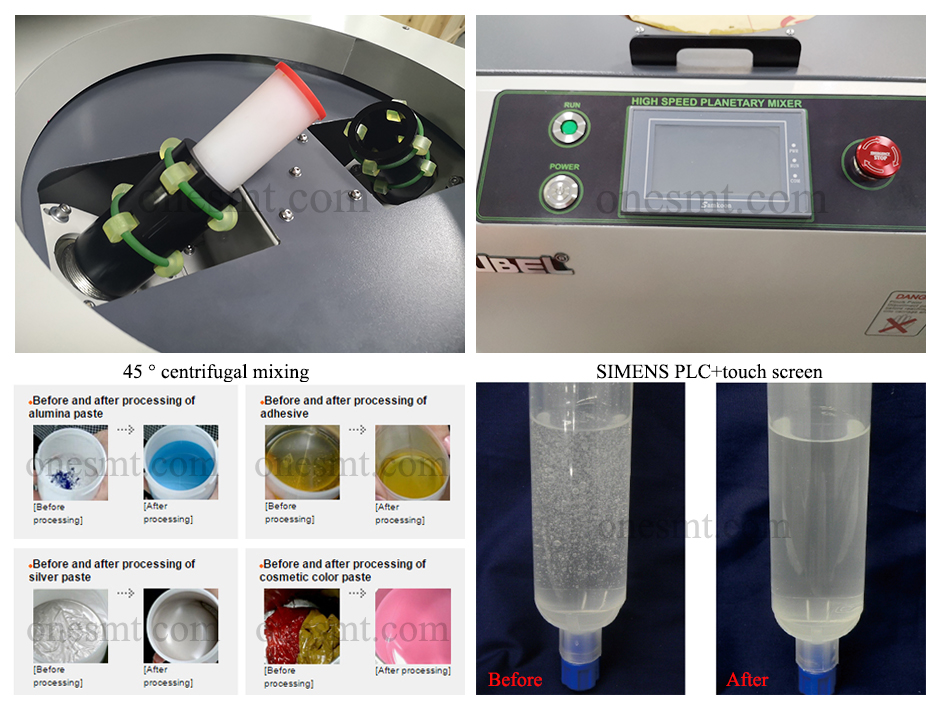

1.Mixing principle is on the basis of Motor rotation and revolution mode of agitation (centrifugal mixing principle), 45° mixing, to get a good mixing result.

2. Jig can be make to order.

3.No need to be opened during mixing to avoid oxidation and water vapor absorption.

4. With safe lock, when the machine running, the top cover can’t open.Safe enough!

5. With alarm function, when the machine finish the set time running, it will alarm to notice you.

6. Mixing time / speed is adjustable. With alarm function when finish mixing.

7. frequency speed controlling , operation is easy, stable running, no noise!

Mixing material :

Silver Paste , Resin adhesive , Powder ,printing ink , Cosmetics, Fluorescent powder, Silica gel, Thermal conductive adhesive…

Specifications

MODELOB-M628A
Dimensions500×500×760(mm)
Revolution speed0-1200RPM/Min
Rotation speed0-830RPM/Min
Motor1P AC110/220V  50/60HZ  800W
Power1P AC110/220V 50/60HZ
Mixing methodCentrifugal Mixing
Mixing angle45°(oblique)
WeightApprox. 150KGS
