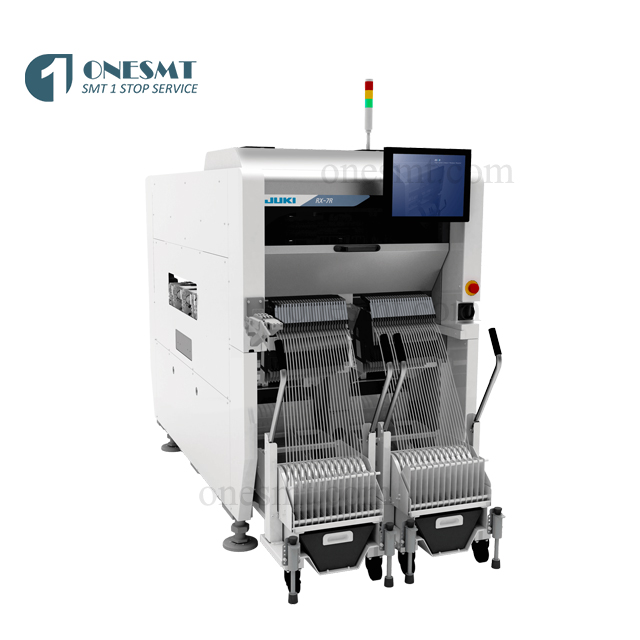

High-Speed Compact Modular Mounter JUKI RX-7R
Features
1.Linking to other machines for improved productivity.
2.Graphical system visualization.
3.JaNets Integraton.
4.New P16S head with improved accuracy.
5.Simultaneous production of PCBs.
6.Top and Bottom Check of Leaded Parts.
7.Low impact placement force.
8.High speed of maximum cluster tact 75,000 CPH.
9.Compact Design – 998mm width.
10.Wide Component Range.
Specification
| High -Speed Compact Modular Mounter RX-7R | ||||
|---|---|---|---|---|
| (P16S×P16S head） | (P16S×P8*1 head) | (P8×P8*1 head) | ||
| Board size | Single lane conveyer | 50×50～510mm*2*3×450mm | ||
| Single lane conveyer Single lane mode | 50×50～510mm*2*3×450mm | |||
| Single lane conveyer Dual lane mode | 50×50～510mm*2*3×250mm | |||
| Component height | 3mm | 3mm(P16S head） | 10.5mm | |
| 10.5mm（P8 head） | ||||
| Component size | 03015*4～□5mm | 03015*4～□5mm （P16Sノ head） | 0603～□25mm | |
| 0603～□25mm （P8 head） | ||||
| Placement speed (Optimum） | Chip | 75,000 CPH | 54,900 CPH | 34,800 CPH |
| IC | – | 6,400 CPH*3 | 12,800 CPH | |
| Placement accuracy | Chip | ±0.04mm(Cpk≧1) | ||
| IC | – | ±0.04mm | ||
| Feeder capacity | Up to 56*6 | |||
| Power supply | 3 phase AC200V、220Ｖ-430V*7 | |||
| Apparent power | 2.3kVA | |||
| Operating air pressure | 0.5±0.05MPa | |||
| Air consumption (standard) | 20L/分ANR（during normal operation） | |||
| Machine dimensions (W x D x H)*9 | 998×1,895×1,530mm | 998×1,895×1,530mm*8 | ||
| Mass (approximately) | about 1,820kg*10 | |||
*1 Contact sales for more details
*2 The BOC, BAD mark, and 2D code can be recognized when the board size X-axis is between 50 mm and 350 mm.
*3 In long board mode.(Two PCBs up to 420mm can be produced simultaneously)
*4 Contact sales for details
*5 Using P8 head
*6 Using RF04AS or RF08AS feeders
*7 Optional transformer required for 220V – 430V
*8 P8 head requires 123mm additional space on the front for the feeder bank
*9 Display and signal light not included
*10 Using P16S x P16S head configuration, dual lane with trolleys
