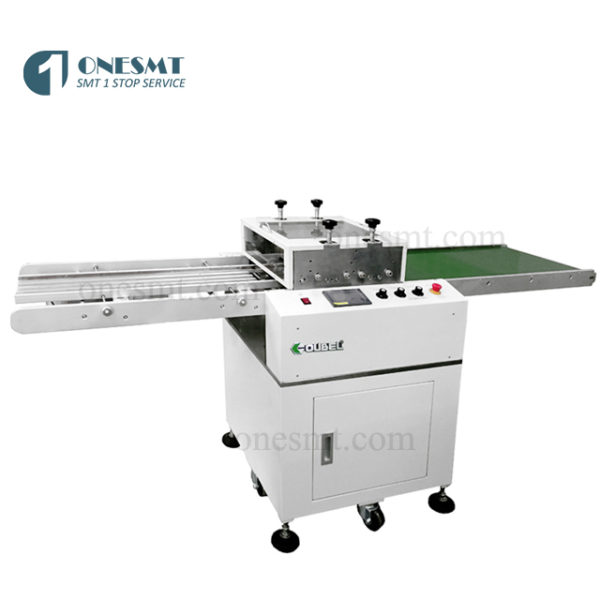

Fully automatic LED Aluminum PCB V cutter
Featrues:
1.Online type . High efficiency cutting,output daily reach>100000pcs.save labor!
2.Blade is made of SKH51 high speed steel with long service life and wear resistance.
3.No out of shape after cutting,meeting process of the glass tube strict requirement!
4.Adjust the blade easily,you can master and use by simple training.
5.Security:installed light induction device guarantee for safe production.
6.Unique new blade,the durability can be improved 1.5-2 times relatively!
7.Cutting the whole panel disposablely,high efficiency,high quality.
8.Appy to cutting V-CUT production.PCB/LED substrate.Especially for the Aluminum PCB.
Specifications:
| Model | OB-C668E | ||||||||||
| Dimensions | 2200mm*580mm*1060mm | ||||||||||
| Blade size | circular knife 60mm*35mm*3mm | ||||||||||
| Material | imported high speed steel materail | ||||||||||
| V-cut thickness | 1/3 plate thickness | ||||||||||
| Power | 1P AC 110V/220V 50/60HZ 200w | ||||||||||
| Pressure | / | ||||||||||
| Speed | 300mm-500mm/s | ||||||||||
| Length | No limit | ||||||||||
| Width | 4mm-100mm better | ||||||||||
| Suitable template | Aluminum LED PCB | ||||||||||
| Weight | Approx. 160kgs | ||||||||||
