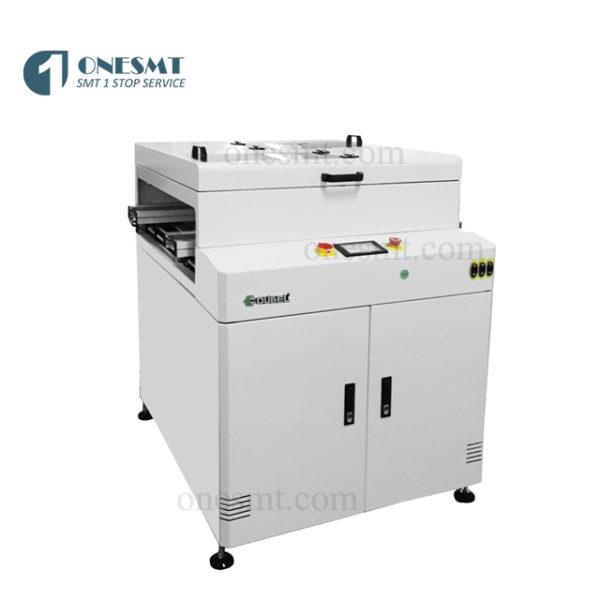

Dual rails PCB reject conveyor

Dual rails PCB reject conveyor is used for NG PCB can be lifted up for visual inspection without interrupting. With dual guide rails.OK PCB can flow to next station.

Model: OB-RC608A
Brand: OUBEL
Delivery Time:4-10 working days

Compare

描述

Dual rails PCB reject conveyor

Features:

1.Reject,inspect and pass through modes provided.

2.PLC controller.

3.Stability enhanced by robust design.

4.Smooth and parallel width adjustment.

5.Length can be customized.

6.Speed is adjustable.

7.SMEMA compatible.

Note: Single or dual rails are customized.

Details:

Specifications:

ModelOB-RC608OB-RC608A
DimensionsLength*665*900mmLength*735*900mm
PCB size50*50-445*330mm50*50-445*460mm
Conveyor speed0.5-20M/min
Power source1P AC 110V/220V 50/60HZ
Power consumptionMax.100VA
Air pressure/consumption4-6Bar ,10L/min
NG PCB quantity3-5pcs
Conveyor height910±20mm
Conveyor directionL-R or R-L (optional)
WeightApprox.75KGsApprox.95KGs
