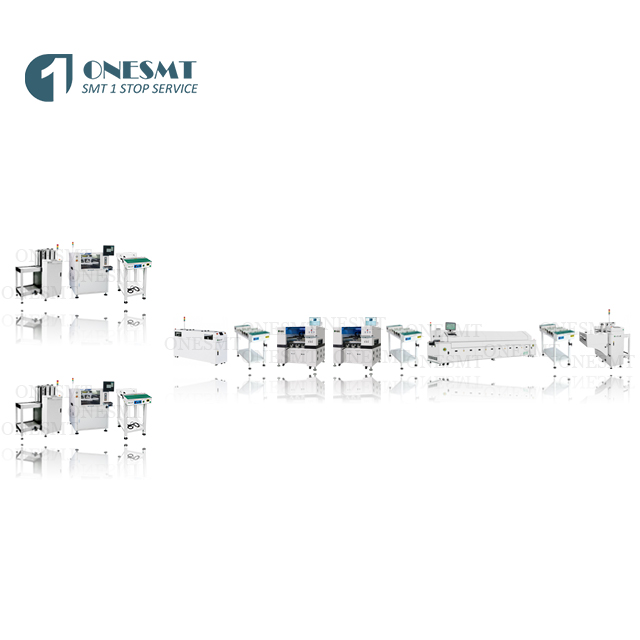

Dual Rails Auto SMT Production Line

Features:

PCB Magazine Loader:

1.Applies to the PLC+touch screen controller.

2.Special gas circuit design to ensure no PCB breakage.

3.It can hold 1magazine, small footprint.

4.With SMEMA signal.

Solder Paste Printer:

1.Special adjustable jacking platform,stable and easy to adjust,it can quickly adjust the pin jacking height of PCB with different thickness.

2.Image and optical system,applicable for tin plating,coppering,gold plating,tin spraying,FPC and other types PCB with of different colors,able to ensure high accuracy.

3.Chinese/English Operating Interface.Adopts windows XP/Win7 operation interface with user friendly software.

PCB Conveyor:

1.Precise M-screw,manual guide rail width adjustable,which ensures two guide rails move smoothly.

2.Imported round special belt, and the patent tracks ,decrease the PCB drop problem.

3.Stucture is made by the aluminum alloy,more stable and longer lifespan.

4.With SMEMA.

Shuttle Conveyor:

1.PLC+LED touch screen control, easy to operate;

2.Smooth and precise width adjustment (leadscrew);

3.With SMEMA signal.

Dual Rails PCB Conveyor:

1..Inspection mode and automatic mode.

2.With dual rails.

3.Stucture is made by the aluminum alloy,more stable and longer lifespan.

4.With SMEMA.

Dual Rails Pick and Place Machine:

1.SMT specifications: platform 600X400mm, applicable to the current market of 99% LED products;PCB board can be affixed to various shapes, without clamps.

2.Mount: Mount 0603 to 7272 can meet all specifications of SMD LED components. In addition to all the planar LED plane, other electronic components (such as resistors,capacitors) and high power LED and the lens can be produced;.

3.High precision: X, Y, W axis are equipped with precision ball screw and guide rail, Z axis 6 sets of imported motor drive,enhance the smooth coordination ofequipment movement, reduce abnormal noise, greatly improve the accuracy and speed of the patch.

Dual Rails Reflow Oven:

1.Lenovo PC , windows 7 operation system, Chinese-English interface screen.

2.15% heat transferring efficiency was improved ,which is more suitable for the LEAD-FREE welding process.

3.Siemens PLC control, more durable and stable.

Dual Rails Unloader:

1.Panasonic PLC+Touch screen control , easy to operate.

2.Special gas path design ensures that the PCB panel is not pushed.

3.With SMAMA.

Specifications:

More details of the product,please check it.

PCB Loader

Auto Solder Paste Printer

PCB Conveyor

PCB Shuttle Conveyor

Dual Rails PCB Conveyor

Dual Rails Pick And Place Machine

Dual Rails Reflow Oven

Dual Rails Unloader

If you are interested about it,please contact us.
