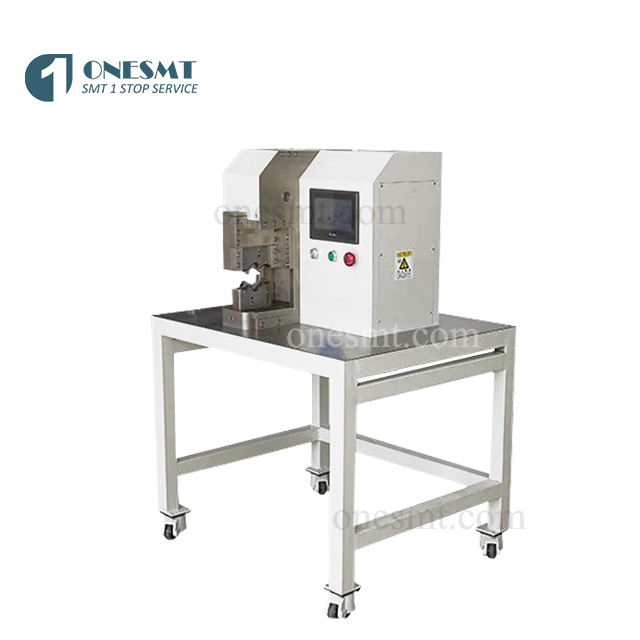

Desktop terminal crimping machine
Features：
1.Suitable for crimping process with customized or cold-pressed terminals;
2.No need to change crimping applicator, servo control system with high accuracy;
3.Separated crimping interface, suitable for intermediate junction, and new energy right angle terminalcrimping;
4.Actual terminal square can be adjusted, with more clearer vision;
5.Compact structure, space saving and low work noise.
Specifications:
| Wire range | 10-120mm² |
| Crimping force | 200KN |
| Diameter. Max | 38mm |
| Crimping width | 12.5mm (Can be special ordered ) |
| Weight | 160kg |
| Dimension | 700×860×1260mm |
| Power | 220v50Hz |
| Motor | 2300w |
