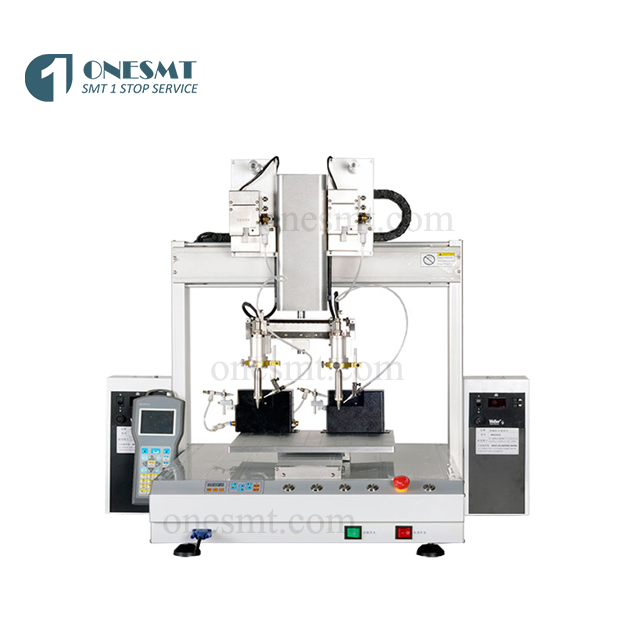

Desktop double heads auto soldering robot

This machine is mainly used in the electronic manufacturing industry. It is mainly aimed at reflow soldering, wave soldering and other production equipment difficult to achieve process and soldering process.

Model:OB-SW331
Brand: OUBEL
Delivery Time: 10-15 working days

Compare

描述

Desktop double heads auto soldering robot

Feature

1.Flexible and diverse soldering methods, with spot welding, drag welding (pull welding) and other functions, and also built-in screwing, dispensing and handling procedures.

2.The equipment can store 99 operating procedures.

3.The same machine can process 99 different products by soldering tin.The mechanical arm of the equipment is made of aluminium profiles by open-die casting. It is not deformed, rust-free and runs steadily.

4.Programming can copy point-to-point and block-to-block to shorten the programming time.

5.The equipment has the function of automatic cleaning, which stabilizes the quality of soldering tin processing and prolongs the service life of soldering iron tip to a certain extent.

6.Multi-axis linkage manipulators are all driven by precision stepper motor and advanced motion control algorithm, which can effectively improve the accuracy of motion positioning and repetition.

Specifications

ModelOB-SW331A
Dimensions720*600*700mm
Controlling systemHENKONG system
Software systemOUBEL
DriverStep motor+Synchronous belt+precise liner screw rod
Repeat precision(X,Y1,Y2,R,Z)±0.02mm-0.05mm
Working voltage220V50Hz
Air source0.4—0.7Mpa
Max. speed500mm/S
Power sourceAC220V   50 -60HZ    350W
Max. LoadX axis:5㎏ / Y1/Y2axis:5㎏  /Z axis:3㎏
Axis No.5 axis
Running  rangeX axis: 500mm ;Y1/Y2 axis :300mm; Z axis:100mm;
Working environmentTemp: 0-40°      Humidity:20-91%
HeaterDirect heating 300W
Temp. controller50-500W
Feeder0.3-1.5mm solder wire (single feeder)
Weight70KGS
