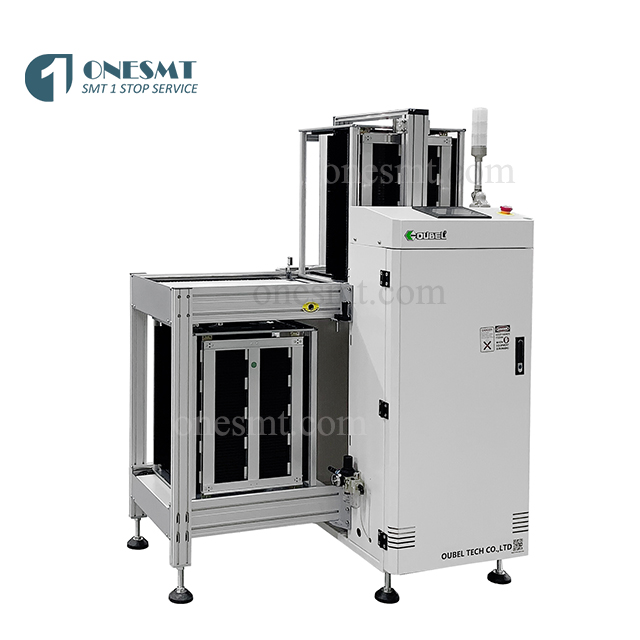

Compact PCB magazine loader

Compact PCB magazine loader is used for loading PCBs automatically in SMT&DIP production line. Small footprint. With 1 magazine.

Model: OB-CL708
Brand: OUBEL
Delivery Time:4-10 working days

Compare

描述

Compact PCB magazine loader

Features:

1.Applies to the PLC+touch screen controller.

2.Strong ,firm and stable design.

3.Up&down pneumatic clamps to ensure the magazine rack position.

4.Special gas circuit design to ensure no PCB breakage.

5. It can hold 1magazine, small footprint.

6.With SMEMA signal.

Details:

Specifications:

ModelOB-CL708OB-CL708L
Dimensions850*765*1250mm1250*845*1250mm
Magazine size355*320*563mm460*400*563mm
PCB size50*50-330*250mm50*50-445*330mm
Magazine quantity1
Feed PCB timeAbout 6s
Magazine change timeAbout 30s
Pitch10,20,30,40mm
Power1P AC 110V/220V Max.300VA
Air pressure4-6bar,10L/min max.
Conveyor height900±20mm
Conveyor directionL-R or R-L (optional)
WeightApprox.120KgsApprox.180Kgs
