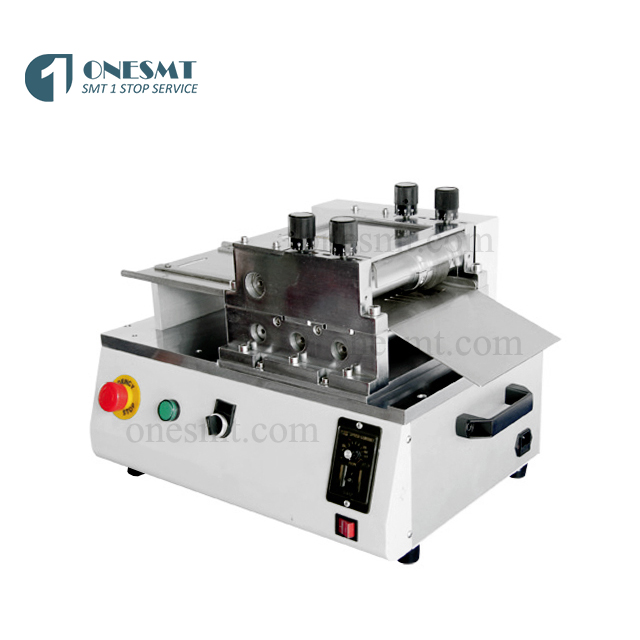

COB PCB V cutter machine
Features:
1. High efficiency, production quantity reach ＞100000pcs. Save labor!
2.Multi group cutting, cutting the whole panel in one time.
3. No out of shape after cutting!
4. Desktop design, save space!
5. Unique special blade, the durability can be improve 1.5-2 times than others!
Specifications:
| Model | OB-C668F | |||||||||||
| Dimensions | 610mm*370mm*400mm | |||||||||||
| Blade size | circular knife 60mm*30mm*3mm | |||||||||||
| Blade material | imported high speed steel of high quality | |||||||||||
| V cut thickness | one third plate thickness | |||||||||||
| Power supply | 10W | |||||||||||
| Air pressure | 0.5-0.8MPa | |||||||||||
| Cutting speed | 1mm-300mm/s | |||||||||||
| Voltage | 220V/110V | |||||||||||
| Cutting width | 4mm-100mm | |||||||||||
| Suitable PCB | COB,Corn lamp strip | |||||||||||
| Weight | Approx.80Kgs | |||||||||||
