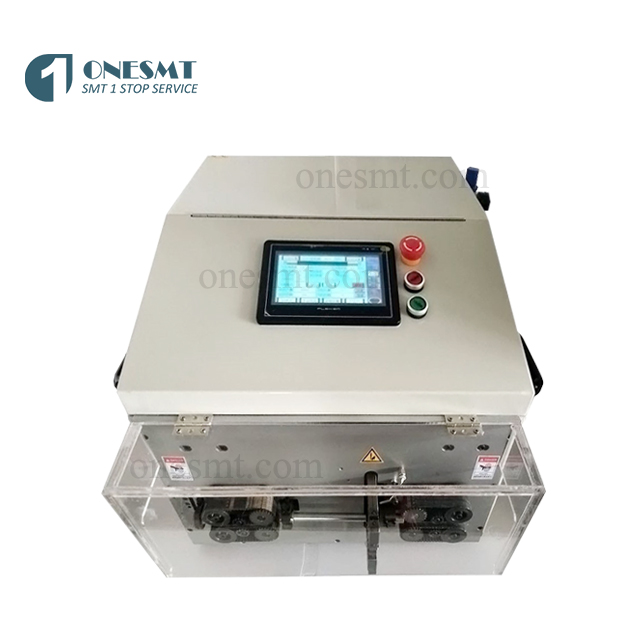

Coax cable Stripping machine

Features:

1.  Coaxial Cable Stripping Machine adopt rotating stripping method, Japanese NSK ball bearing and wire rod drive, which control the operation accuracy within 0.08mm.

2.  Rotating blades adopt Swiss Imported tungsten steel, through 15 steps high precision grinding technology to make sure the blades surface roughness within 0.0005mm which guaranteed the cutting accuracy.

3.  Rotation of YH Series stripper is highly intuitive and entails no lead time. With just three analogous controls, you can set diameter, stripping length and pull-off length. The display shows the cut diameter in 0.01 mm increments.

4.  It is easy to trigger a processing cycle: the stripping process starts automatically the moment the tip of the conductor touches the trigger sensor. If automatic triggering is not desired or possible (e.g. due to flexible conductors), the foot-operated switch is used.

5.   The centering unit positions the cable with precision.

6.   Support full stripping, half stripping, middle stripping and twisting.

7.   The rotating blades cut the entire circumference of the insulation with precision. The cutting surface is smooth and free of lines or ridges.

8.   Minimum conductor damage: the blades cut through the insulation and down to a thin ring around the conductor. That means the remaining area to be pulled off is small and the pull-off force is lower.

Application:

Automatic coaxial stripping machine can be a diameter of 0.10-4.00mm coaxial cable between the stratified stripping, the middle of the window, cutting and other operations of the automatic coaxial stripping machine. Compared to previous models, production speed greatly improved. With the combination of the rotary cutter and the V-type cutter head, all coaxial cables can be machined within the range without the need to replace the tool. The automatic coaxial stripping machine is fully programmable, can store 60 kinds of wire processing parameters of the program, easy to learn. Efficient production efficiency and excellent stability for your choice of equipment to provide a cost-effective program!
