Automatic thick wire cutting stripping machine

Model: OB-WS032
Brand: OUBEL
Delivery Time: 3-5 working days

Compare

描述

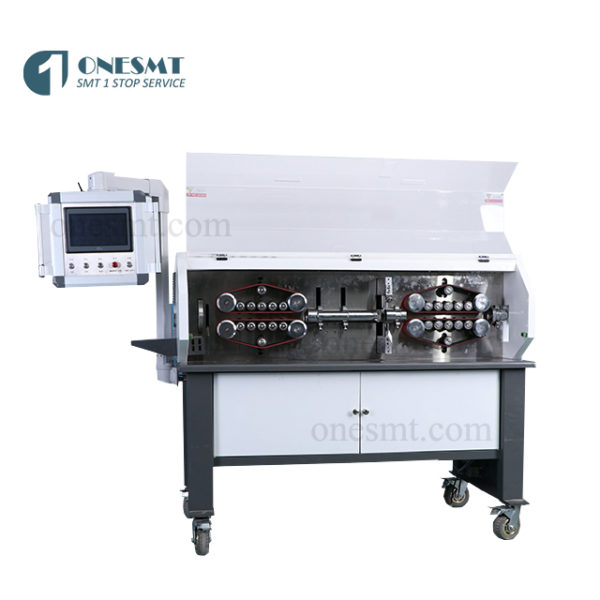

Automatic thick wire cutting stripping machine

Features:

  1. Microcomputer for the integration of the fully automatic computer wire stripping machine is a kind of the introduction of Japan, Taiwan and other advanced technology of automatic numerical control equipment.
  2. Widely used in electronic industry, automobile industry, electrical appliances, motors, lamps, toys and other kinds of wiring harness processing products.Optimum strip wire line with teflon/PVC/silicone /. Glass fiber, etc.
  3. This product USES LCD screen people dialogue mode, has a beautiful appearance, simple operation, convenient maintenance, stable performance, fast speed, high precision characteristics.
  4. Wire length can be set freely, according to the customer request to modify, can strip wire of different thickness, also have to row lines, sheathed cable, power cable and casing shear and other functions.
  5. Wire feeding method by belt feeding cable without production marking and scratch.

Specifications:

  1. large gauge cable cutting and stripping machine
  2. wire cutter stripper suppliers
  3. Cable wire cutting and stripping machine
Available Wire Size30-300mm
Cutting Length1-99999.99mm
Stripping lengthHead: 1-1000mm (Wire head) End :1-300mm (Wire tail)
Productivity500-1000PCS/hour
Display10 inch real color touch screen
Dimensions700x450x400mm
Weight200KG
Cutting tolerance0.002*L (mm) L=Cutting length
