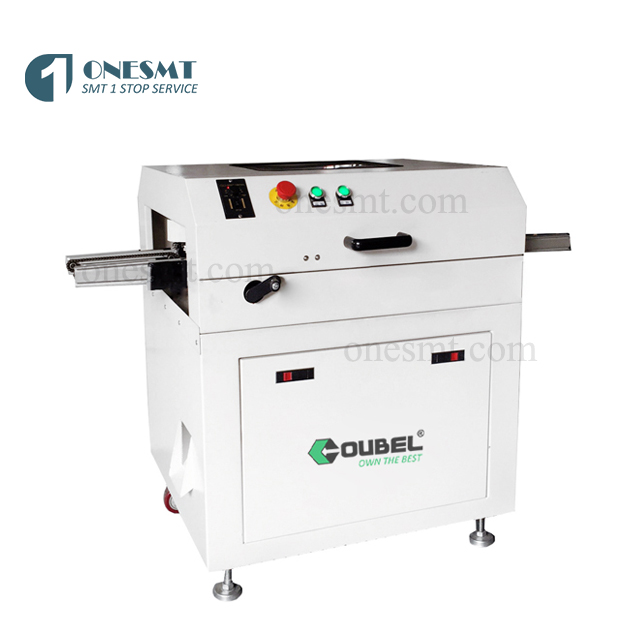

Automatic PCB lead cutter
Features
1.Automatic input and output the PCB, cutting the PCB lead after the welding.
2.High stability, it can connect with the automatic soldering machine or AI machine.
3.Applies to the finger type slid to fasten the PCB board.
4.Finger slid change easy and economic.
5.With the prevent bending device, to overcome the bending PCB in welding.
6.Input speed can be adjusted, max. speed is 3m/min.
Specifications
| Model | OB-C668E |
| Dimensions | 1100(L) x 600(W) x 930(H) mm |
| Max. PCB size | 500mm(L) x200mm/ 250mm(W) |
| Main axis speed | 4500/Min |
| Main axis motor | 3/4 Hp |
| Guide rail speed | 0-3 M adjustable |
| Min. lead height | 1.0-1.5mm Min |
| Power | 220V 50/60Hz |
| Weight | 150Kgs |
