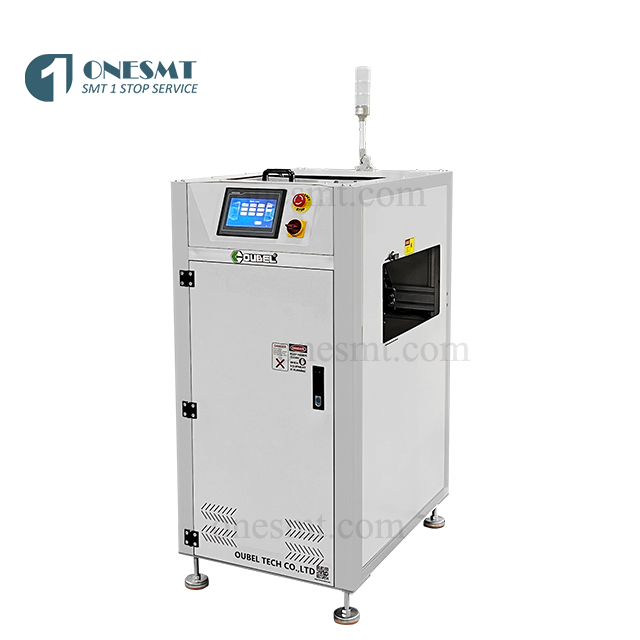

Auto PCB invertor
Features:
1.PLC + LED touch screen control system, easy to operate.
2.Enclosed design with built in torque limiter ensures highest level of safety.
3.Top cover can be opened, easy to make the maintenance.
4.By pass mode provided.
5.Smooth and precise inverting motion.
6.Small machine footprint.
7. With SMEMA signal.

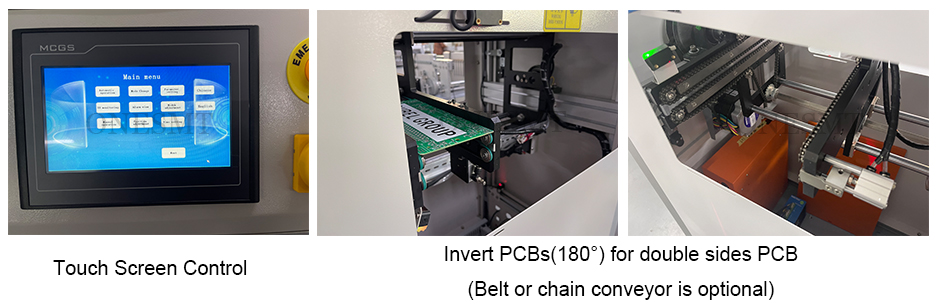

Details:
Specifications:
| Model | OB-FC608 | ||
| Dimensions | 500*725*1250mm | ||
| PCB size | 50*50-445*330mm | ||
| Power consumption | Max.150VA | ||
| Cycle time | About 5s | ||
| Power source | AC 110V/220V 50/60HZ | ||
| Air pressure | Max.1.1L/min | ||
| Conveyor height | 910±20mm | ||
| Conveyor direction | L-R or R-L (optional) | ||
| PCB thickness | Min 0.6MM | ||
| Weight | 120KGS | ||
