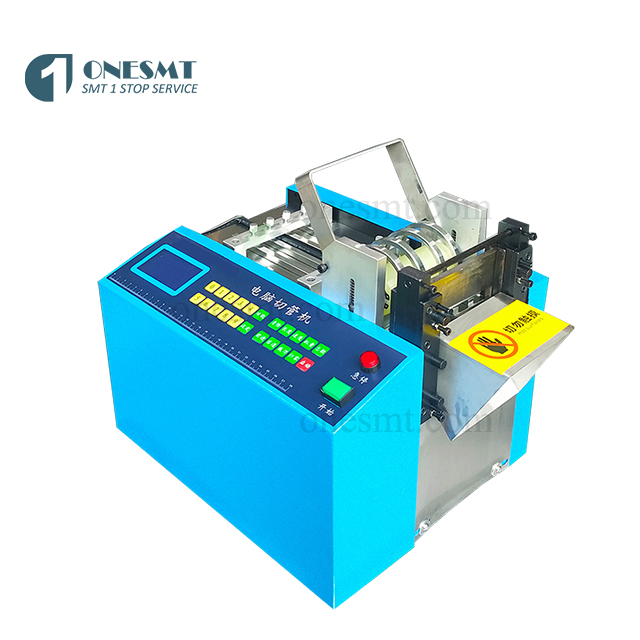

Automatic microcomputer cutting machine

Automatic microcomputer cutting machine.Cutting all kinds of tube, sheet, film , tape …Easy to operation, and high efficiency.Cutting Width and speed are adjustable

Model: OB-C100
Brand: OUBEL
Delivery Time: 2-4 working days

Compare

描述

Automatic microcomputer cutting machine

Cutting range:

Tube: Heat shrink tube, PVC tube, fiberglass tube, Teflon tube etc.

Cable: Wire,flat cable etc.

Sheet: Nickel sheet, plastic sheet, rubber sheet, PVC sheet etc.

Film:  Plastic film,relecting film,Malar film , Paper, PE paper, Aluminum foil, release paper etc.

Features:

1. Suitable for all kinds of pipe ,belt materails auto cutting.

2. Highest precise up to 0.1mm,high speed feed controlled by the micro PC.

3. Cutting speed and cutting length are adjustable on display.

4. Stop and delay time can be set.

5. With counting function.

6. Applies to the high speed step motor, control the cutting length with high precise.

7. With Manual/Auto running function, Manual is used for adjust , Auto is used for normal operation.

8. With HD LCD display, easy to operate.

9. With special high speed blade, longer lifespan.

Specifications:

Model
OB-100
OB-100S
OB-120
OB-160
OB-200
OB-300
OB-400
OB-500
Dimensions
430*300*480mm
430*300*480mm
430*330*480mm
430*380*480mm
430*400*480mm
430*510*480mm
430*620*480mm
650*810*390mm
Cut speed
150pcs/min
Cut width(mm)
o.1-100
o.1-100
o.1-120
o.1-160
o.1-200
o.1-300
o.1-400
o.1-500
Cut length
1mm-100m
Cut precise
0.1mm
Blade
SKD-11 high speed blade
Display
LCD
Language
Chinese and English
Running
auto feed+cutting two axis running(Y/Z)
Cut power
400W
Weight
30KGS
33KGS
35KGS
37KGS
39KGS
41KGS
50KGS
81KGS
