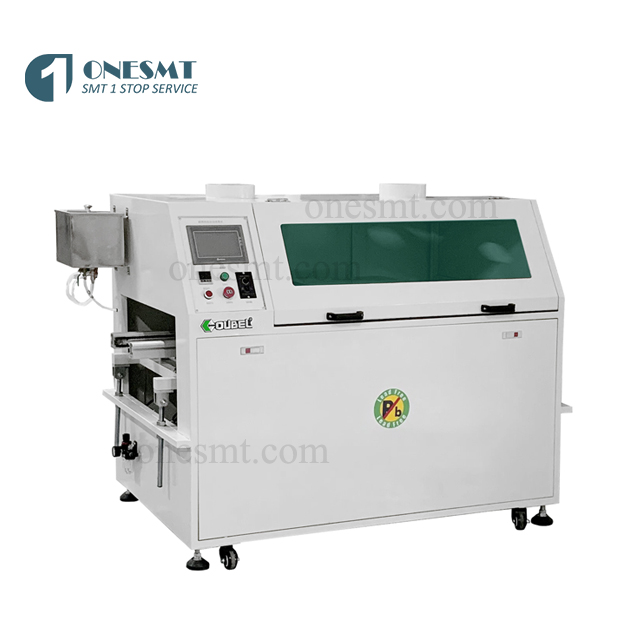

Automatic flux spray machine

Automatic flux spray machine

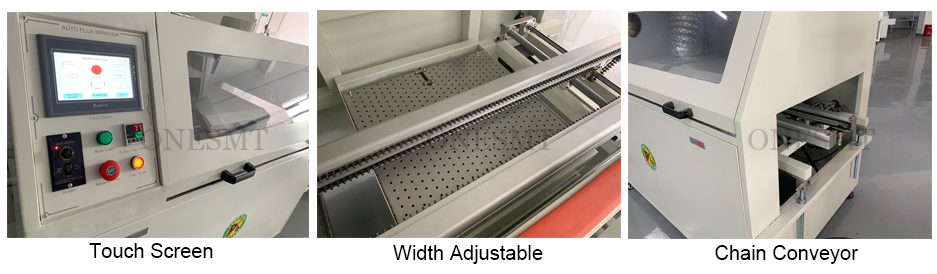

Preheat+ auto flux spray.  PLC +touch screen controller.

Model: OB-FS300
Brand: OUBEL
Delivery Time: 10-15 working days

Compare

描述

Automatic flux spray machine

Features:

1. Suitable for the small-scare electronic manufacture, small quantity production; Laboratory ;Teaching etc.

2.Satisfied to the PCB spraying before the welding.

3.Improve the welding quality, fulfill the full-automatic spray flux .

4.Improve the production efficiency, it is can spray and preheat bulk PCB at the same time.

5. Welding pin can be inner 60mm;

6. The flux spray device applies to the patent step motor controlling, speed is adjustable freely, spray nozzle is corrosion resistance ,and isn’t easy to block.

7. Any kinds of the soldering filter is option to purchase, we can make to order.

8.Preheating temperature can be set up to 300℃.

Specification:

MODELOB-SF300
Dimensions1000mm×950mm×1160mm
PCB size50-350(mm)
Power220V/50Hz-60Hz
Start power3000W
Normal working power300W-600W
Controlling method PLC+Text display screen control
Preheat300mm (optional)
Heating timeAbout 5 minutes
Temperature control methodPID +SSR driving,Temp control precision is ±3℃
WeightApprox.100KGS
