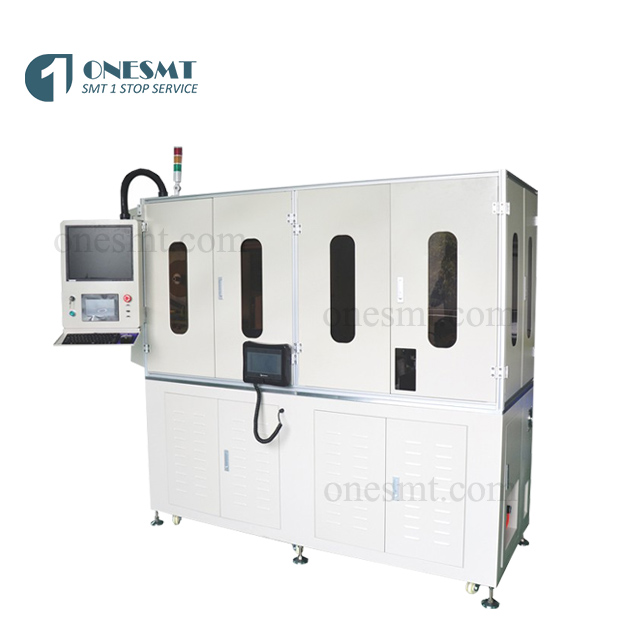

Automatic coaxial cable stripping cutting crimping soldering machine
Description:
Fully automatic strip cut crimping coaxial cable machine for tiny i 0.81,1.13,1.37 mm diameter cable.
Specifications:
| Weight | 300kg |
| Size | 2300*1400*2200mm |
| Air pressure | 0.5pa |
| Power | 6KW |
| Cable size | 0.81,1.13,1.37 |
| Cable length | 50-800mm adjustable |
| Mechanical arm | 4axis Mechanical arm(Toshiba) |
| Test | High voltage short circuit |
| Visual inspection | Visual inspection shows clear and accurate |
| Terminal range | 0.81, 1.13,1.37 changeable |
| Terminal crimping | Terminal riveting is adjustable, the appearance can not be scratched, bright marks |
| Connecting | Can be connected to the rear welding machine to produce |
| Temperature setting | The actual temperature of the tin furnace cannot be different from the displayed temperature by ±10 degrees. |
| Processing methods | One end crimping, another end dip tinning |
| Efficiency | 900-1000pcs/H |
| Defect rate | Finished product defect rate about 1% |
