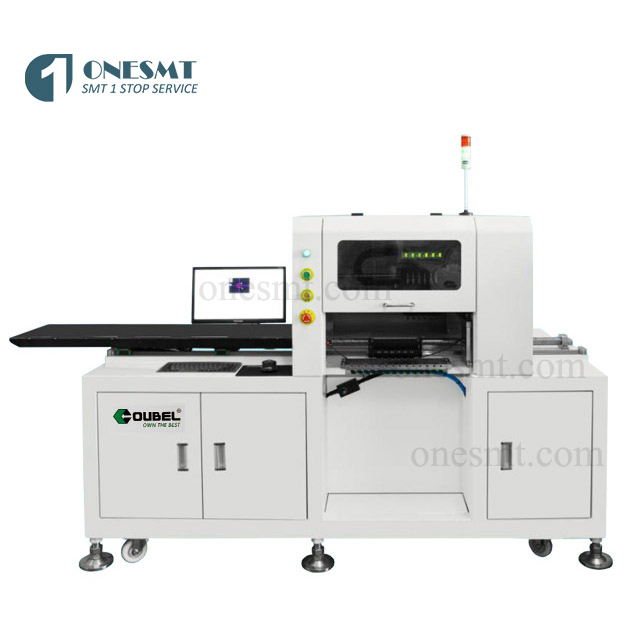

Semi-auto 1.5m Pick And Place Machine

Model: OB-M06
Brand: OUBEL
Delivery Time:20-25 working days

Compare

描述

Semi-auto 1.5m Pick And Place Machine

Description:

Use the most convenient positioning block, base plate origin positioning method to fix position. The Positioning is highly accurate (Precision less than 0.05mm). Mounting angle range 0-360° and the precision is 0.1°. Every picking nozzle is an independent rotation angle, moreover added with 6 cameras for components recognition. This machine can pick and place include LED tube light, and place at will on bulb light, down light, spot light, ceiling light, LED fence light, LED driving power supply, copper wire string light and so on.

Details:

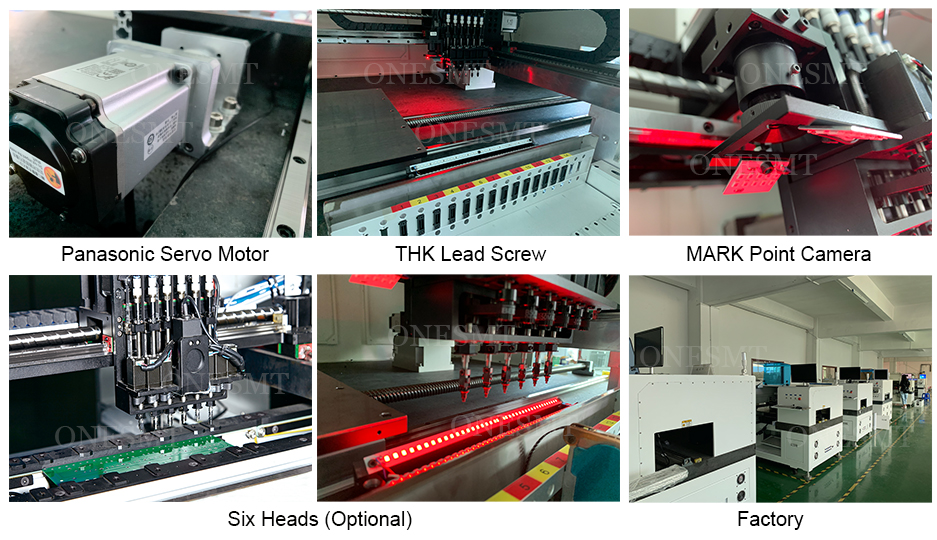

Six Head Pick&place machine

Specifications:

Product name
Semi-auto 1.5m pick and place machine
Maximum PCB area
1200×385mm
Maximum moving range
X axis 1200mm, Y axis 390mm
Mounting head
6/8 Heads
Z axis Maximum moving range
12mm
Max placement speed
40000CPH
Typical placement speed
0-35000CPH
Movement precision
±0.05mm
Belt type feeder8mm, 12mm, 16mm, and 24mm feeder
Positioning method
MARK point camera + 8 sets Sony visual camera position+1 set industrial camera
Transmission method
Semi Automatic
Can mount components
0603 upper resistor and capacitor, and all kinds LED 3528, 7070 LED chips, meanwhile meet requirement of SOP SOT chip placement, and compatible with all kinds of high power chip mount.
Types of production
LED tube light、soft LED strip light、power supply driver、fence light、display module、display screen etc multi LED application products.
Programming method
Automatic Visual camera Positioning programming
Number of feeders station
14pcs of feeder stations for 8mm feeder or 7pcs feeder stations for 12mm feeders
Operating system
WINDOWS 7
Compressed air
0.55MPA
Power supply
220V, 50Hz, 2.0KW
Weight
1000Kg
Dimension
2000MM(L)*1200MM(W)*1450MM(H)
