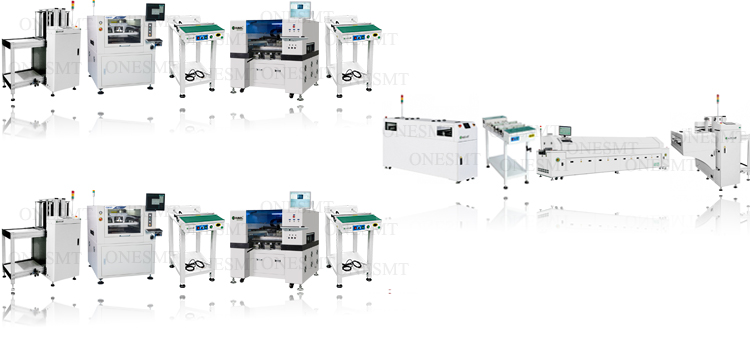

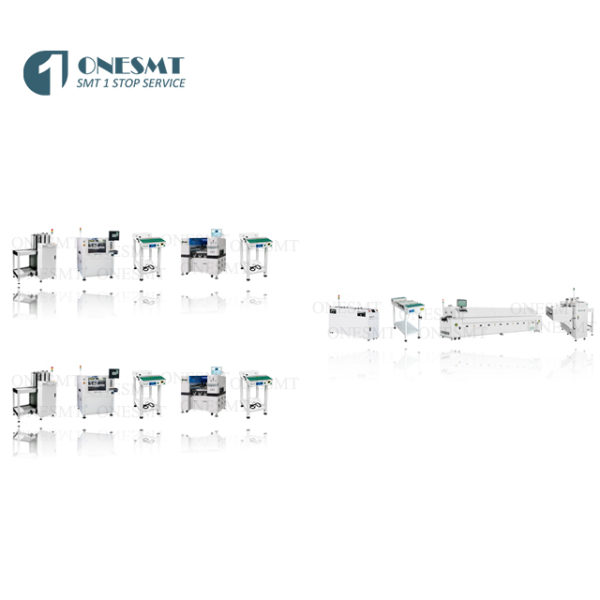

Auto SMT Production Line(2 in 1 dual rails reflow oven)
Features:
PCB Magazine Loader:
1.Applies to the PLC+touch screen controller.
2.Special gas circuit design to ensure no PCB breakage.
3.It can hold 1magazine, small footprint.
4.With SMEMA signal.
Solder Paste Printer:
1.Special adjustable jacking platform,stable and easy to adjust,it can quickly adjust the pin jacking height of PCB with different thickness.
2.Image and optical system,applicable for tin plating,coppering,gold plating,tin spraying,FPC and other types PCB with of different colors,able to ensure high accuracy.
3.Chinese/English Operating Interface.Adopts windows XP/Win7 operation interface with user friendly software.
PCB Conveyor:
1.Precise M-screw,manual guide rail width adjustable,which ensures two guide rails move smoothly.
2.Imported round special belt, and the patent tracks ,decrease the PCB drop problem.
3.Stucture is made by the aluminum alloy,more stable and longer lifespan.
4.With SMEMA.
Pick and Place Machine:
1.SMT specifications: platform 600X400mm, applicable to the current market of 99% LED products;PCB board can be affixed to various shapes, without clamps.
2.Mount: Mount 0603 to 7272 can meet all specifications of SMD LED components. In addition to all the planar LED plane, other electronic components (such as resistors,capacitors) and high power LED and the lens can be produced;.
3.High precision: X, Y, W axis are equipped with precision ball screw and guide rail, Z axis 6 sets of imported motor drive,enhance the smooth coordination ofequipment movement, reduce abnormal noise, greatly improve the accuracy and speed of the patch.
Shuttle Conveyor:
1.PLC+LED touch screen control, easy to operate;
2.Smooth and precise width adjustment (leadscrew);
3.With SMEMA signal.
Dual Rails PCB Conveyor:
1..Inspection mode and automatic mode.
2.With dual rails.
3.Stucture is made by the aluminum alloy,more stable and longer lifespan.
4.With SMEMA.
Reflow Oven:
1.Lenovo PC , windows 7 operation system, Chinese-English interface screen.
2.15% heat transferring efficiency was improved ,which is more suitable for the LEAD-FREE welding process.
3.Siemens PLC control, more durable and stable.
Dual Rails Unloader:
1.Panasonic PLC+Touch screen control , easy to operate.
2.Special gas path design ensures that the PCB panel is not pushed.
3.With SMAMA.
Specifications:
| PCB Magazine Loader | Dimensions | 850*765*1250mm | Magazine size | 355*320*563mm |
| PCB size | 50*50-330*250mm | Magazine quantity | 1 | |
| Air pressure | 4-6bar,10L/min max | Weight | Approx.120Kgs | |
| Solder Paste Printer | Max. Size (L x W) | 400 mm x 340 mm | Thickness | 0.4~6 mm |
| Conveyor Speed | Max. 1,500 mm/s | Hardware | LCD Monitor, Mouse & Keyboard | |
| Operating System (OS) | Windows 7 or Higher | I/O Interface | SMEMA Standard | |
| PCB Conveyor | Dimensions(mm) | Length×640×910 | PCB Width | 50-350(mm) |
| PCB Direction | L-R or R-L | Speed | 0-1000(mm)/Min | |
| Communication Plug | SMEMA Signal | Platform Material | ESD Rubber Mat | |
| PCB Shuttle Conveyor | Dimensions | 500*W*1050mm | PCB size | 50*50-330*250mm |
| PCB thickness | Min.0.6mm | Conveyor height | 900±20mm | |
| Conveyor direction | L-R or R-L （optional) | Weight | Approx.140Kgs | |
| Dual Rails PCB Conveyor | Dimensions(mm) | Length*1050*910mm | PCB Width | 50-350mm |
| PCB Direction | L-R or R-L | Speed | 0.5-20M/min | |
| Rail quantity | 2 | Weight | Approx.100Kgs | |
| Dual Rails Pick and Place Machine | Maximum PCB area | 600×400mm | Mounting head | 8 Heads |
| Max placement speed | 40000CPH | Movement precision | ±0.05mm | |
| Minimum component | 0402-14MM | Operating system | WINDOWS 7 | |
| Dual Rails Reflow Oven | Heating zones | Top8 /bottom8 | Max width of PCB | 400mm |
| Width of conveyor | 50~400mm | Conveyor speed | 0～2000mm/Min | |
| Heating time | Approx. 20min | Dimensions(mm) | 5400*1370*1555 | |
| Dual Rails Unloader | Dimensions | 1510*1550*1250(mm) | Conveyor speed | 0.5-20M/min |
| Power | AC 110V/220V 50/60HZ | Up/down pitches | 10/20/30/40mm | |
| Conveyor direction | L-R or R-L (optional) | Weight | Approx. 320KGS |
More details of the product,please check it.
If you are interested about it,please contact us.
