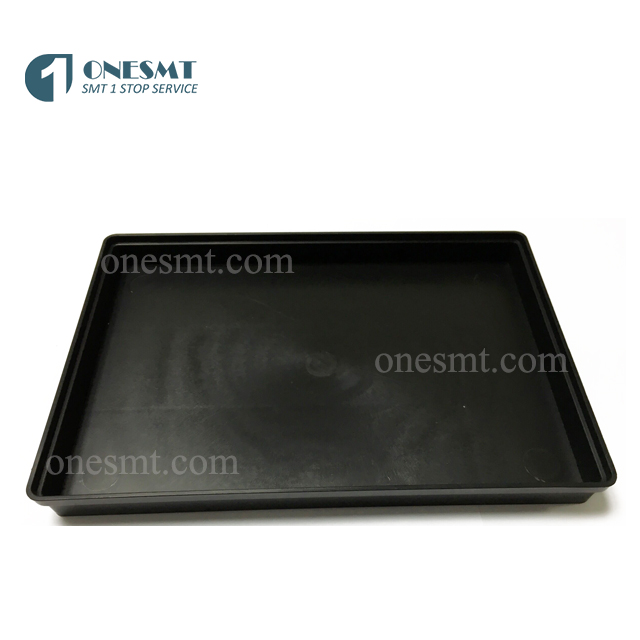

Antistatic Tray
Description:
ESD Tray provide effective protection for handling static sensitive parts, electronic components, assemblies and loaded printed circuit boards. The perfect choice to convey, carry, accumulate, and warehouse a variety of static sensitive parts or assemblies. Made of reinforced thermoset polyester composite material, these trays offer permanent ESD properties without requiring surface treatments.
Features:
- Resistant to abrasion and chemicals
- Easily cleans in steam or water with a temperature range of -60-250 degrees F
- Permanently dissipative, properties unaffected by washing
- Features a conductive bottom layer with static dissipative top
- Resistant to hot solder, irons and most solvents
| Model | External Size | Internal Size |
| OB-E1413-1 | 375*250*65mm | 345*225*60mm |
| OB-E1413-2 | 440*295*80mm | 410*265*75mm |
| OB-E1413-4 | 318*231*41mm | 313*226*36mm |
| OB-E1413-5 | 480*330*40mm | 445*295*36mm |
| OB-E1413-6 | 435*287*49mm | 396*263*43mm |
| OB-E1413-9 | 285*195*26mm | 280*190*23mm |
| OB-E1413-11 | 380*310*28mm | 375*305*23mm |
| OB-E1413-12 | 360*360*85mm | 350*350*75mm |
| OB-E1413-35 | 375*275*40mm | 360*261*35mm |
| OB-E1413-45 | 454*298*58mm | 436*282*51mm |
