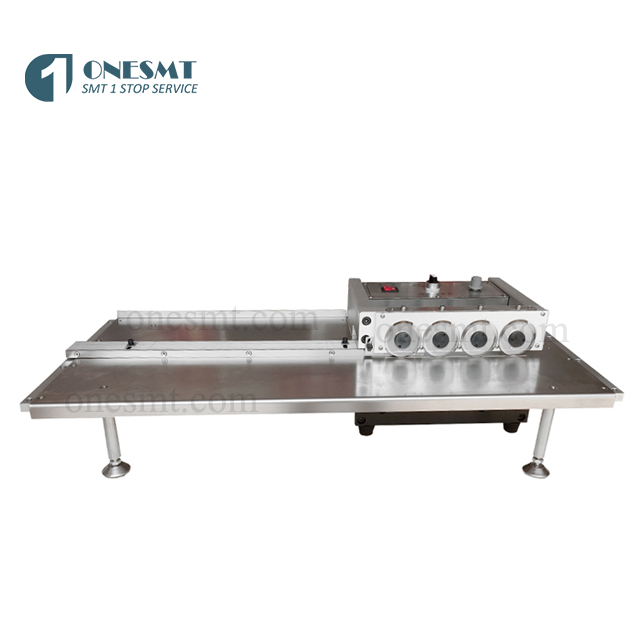

Aluminum LED PCB separator

Aluminum LED PCB separator.Four groups blade design.More efficiency and longer lifetime.

Model: OB-C668B(Four group blades type)
Brand: OUBEL
Delivery Time: 2-5 working days

Compare

描述

Aluminum LED PCB separator

Features

1.Decrease the stress , avoid the welding pot break.

2.Adjust the up guide slip by manual, which can solve the V cut depth different problem.

3.There is the guide for V groove, which can ensure the cutting quality.

4.High efficiency , V max=200mm/s. Speed is adjustable.

5.High precision, easy to maintenance, safe enough.

6.Machine is portable,high speed, easy to operate.

7.The up and down blade can be adjusted accurately.

8.It can make to order, if the PCB is over height or the special PCB.

9.PCB components height limit :20mm, under the PCB board’s components height limit 10mm. Inside of the PCB max. width is 240mm, another side don’t limit.

Specifications

ModelOB-C668B (Four groups blades)
Dimensions800*400*240mm
Assembly dimensions2600*400*240mm
voltageAC110V/220V 50/60HZ
cutting speed80, 120, 200, 300mm/s
PCB thickness0.5~3mm
Power70W
PCB materialsAluminum substrate, copper substrate, FR-4, glass fiber board ect
weightApprox.45KGS
